High-pressure pumps, Page 6

UDOR BC 21/20 S triplex plunger pump with 21 L/min flow, 200 bar maximum pressure, 1450 rpm and an 8.0 kW (10.8 hp) power requirement. Ø24 mm cylindrical male shaft;...

UDOR CC 30/20 S triplex plunger pump: 30 L/min, maximum pressure 200 bar and 1450 rpm. Maximum power requirement: 11.5 kW. Manufacturer code 900000; 24 mm cylindrical male shaft.

UDOR CC 42/17 S plunger pump: 44 L/min at 1450 rpm, maximum pressure 170 bar and manufacturer-rated power 14.3 kW.

UDOR CC 50/15 S plunger pump: 50 L/min, 150 bar, 1450 rpm and 14.3 kW. Manufacturer code 903400; 24 mm male shaft. For high-flow washing and cleaning systems.

UDOR CC 70/15 S high-flow plunger pump: 70 L/min at 1450 rpm, maximum pressure 150 bar. See the manufacturer documentation and power-rating note below before selecting the drive.

Udor CKC 21/36 S high-pressure plunger pump delivering 21 L/min at up to 350 bar and 1450 rpm. Its brass manifold and 24 mm male drive shaft suit integration into professional...

Udor EUCW 13/20S high-pressure pump delivering 12.5 L/min at up to 200 bar and 1450 rpm. Its nickel-plated brass head and chemical-resistant seals are designed for car-wash and...

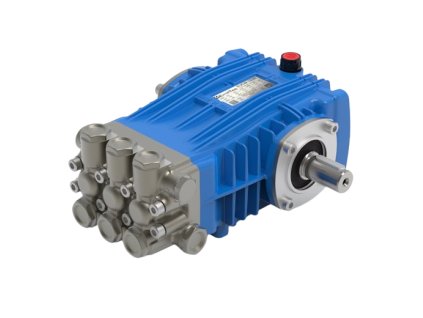

UDOR EUCW 15/20 S high-pressure plunger pump with 10.5–15 L/min flow at 1000–1450 rpm, 200 bar maximum pressure and a 5.7 kW power requirement. Chemical-resistant seals and...

Udor EUCW 18/20 S high-pressure pump, 18 L/min at 200 bar, 1450 RPM. Designed for self-service car wash stations and applications using aggressive detergents or recycled water....

Udor EUCW 21/20 S high-pressure pump, 21 L/min at 200 bar, 1450 RPM. Built for self-service car washes and applications with aggressive chemicals or recycled water. Durable and...

UDOR GAMMA 202 TS 1C plunger pump: 208 L/min at 600 rpm, maximum pressure 60 bar and manufacturer-rated power 23.9 kW.

UDOR GAMMA 85 TS 1C reciprocating plunger pump with 85 L/min flow, 60 bar maximum pressure, 600 rpm and a 9.8 kW (13.1 hp) power requirement. Manufacturer code 838200.
