UDOR GAMMA 85 TS 1C
Code: 1494
Product detailed description

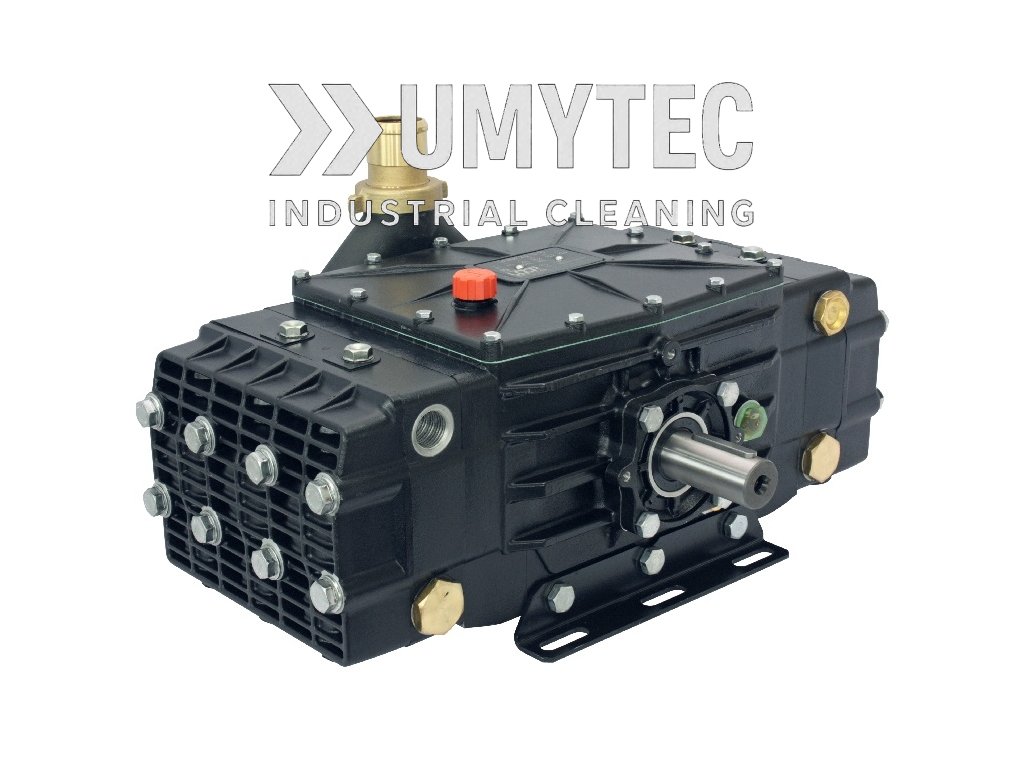

The UDOR GAMMA 85 TS 1C is a reciprocating plunger pump. It delivers 85 L/min at a maximum pressure of 60 bar, runs at 600 rpm and requires 9.8 kW (13.1 hp).
Verified technical specifications
- Flow: 85 L/min
- Maximum pressure: 60 bar
- Speed: 600 rpm
- Power requirement: 9.8 kW / 13.1 hp
- Manufacturer code: 838200
- Configuration: double splined/cylindrical shaft
Construction and applications
The pump uses three solid ceramic plungers and an anodized-aluminium head. UDOR lists de-icing, firefighting, construction and orchard or vineyard spraying among the series applications.
Confirm the required shaft connection and operating conditions before ordering. Compare this model with other UDOR high-pressure pumps, or review the official UDOR GAMMA-series data.
Additional parameters
| Category: | PUMPS |
|---|---|
| Weight: | 9 kg |
| Flow rate: | 85 L/min |
| Pressure Max: | 60 bar |
| RPM: | 600 rpm |
| Power: | 9.8 kW / 13.1 hp |
UDOR: plunger and diaphragm pump expertise
UDOR is an Italian pump manufacturer based in Rubiera. Founded in 1966, the company designs and manufactures diaphragm and plunger pumps for water and application-specific liquids at low, medium and high pressure.
Two pump technologies, different duties
UDOR diaphragm pumps are used in spraying and chemical or agricultural applications, while its plunger pumps serve high-pressure cleaning and water jetting. The distinction matters: the correct technology depends on the liquid, required pressure and working conditions.
- Plunger pumps for pressure washing and industrial cleaning.
- Diaphragm pumps for agricultural spraying and compatible chemical solutions.
- Application-specific pumps for firefighting and de-icing systems.
- Motorpump units, mounting options and pressure regulation accessories.
Choosing and maintaining a UDOR pump
Select the pump by operating pressure, flow rate, speed and drive connection. Verify compatibility of the head, diaphragms or seals with the liquid being pumped. For service work, use the full model designation and the manufacturer’s exploded drawing to identify replacement components.
Compare our UDOR high-pressure pumps for professional cleaning installations and replacement projects.
