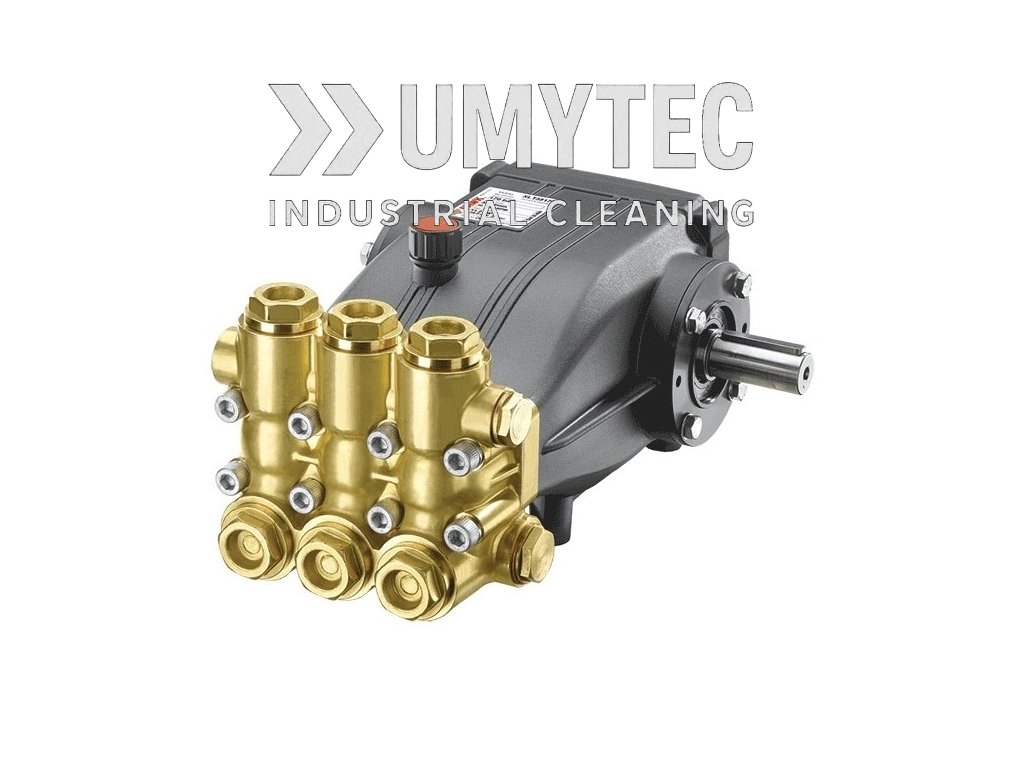

HAWK XLT2230I
Code: 1800
Product detailed description
The HAWK XLT2230I is a high-pressure plunger pump from the standard XLTI series. Its verified 50 Hz operating point is 22 L/min at 300 bar and 1450 rpm.
Verified operating data
| Frequency | Flow rate | Maximum pressure | Speed | Power |
|---|---|---|---|---|
| 50 Hz | 22 L/min | 300 bar | 1450 rpm | 12.2 kW |
| 60 Hz | 26 L/min | 300 bar | 1740 rpm | 14.6 kW |
Connections and service data
- Maximum water temperature: 65 °C
- Technical pump weight: 17.8 kg
- Oil capacity: 1.2 L
- Inlet: G 3/4"
- Outlet: G 1/2"
IL and IR executions
HAWK manufactures this model as XLT2230IL (code 1.099-089.0) and XLT2230IR (code 1.099-090.0). Confirm the required shaft execution and exact manufacturer code before ordering.
Applications
The XLTI series is intended for pressure washers, municipal cleaning, vehicle-wash systems, misting and firefighting equipment. Browse our HAWK high-pressure pump range or review the official HAWK XLTI specifications.
Additional parameters
| Category: | PUMPS |
|---|---|
| Flow rate: | 22 L/min |
| Pressure Max: | 300 bar |
| RPM: | 1450 /min |
| Power: | 12,2 kW |
HAWK: high-pressure pump technology
HAWK specialises in high-pressure plunger pumps for professional cleaning and industrial water systems. Manufactured by Leuco in Italy, the brand covers a wide range of duties, from compact pressure washers to vehicle washing installations and demanding industrial cleaning equipment.
Product range and applications
The HAWK range includes pumps for pressure washing, car washes, municipal cleaning, misting and firefighting. Dedicated configurations also serve food processing, reverse osmosis and chemical applications. These uses require different materials and operating conditions, so suitability depends on the specific pump series.
- High-pressure pumps for professional pressure washers and industrial cleaning.
- Car wash configurations for self-service bays and automatic washing systems.
- Compact misting pumps and higher-flow pumps for mobile equipment.
- Accessories and service components for pump installation and maintenance.
Choosing a HAWK pump
Match flow rate, operating pressure, shaft arrangement and rotational speed to the drive and cleaning system. Inlet temperature, water quality and seal compatibility are equally important when selecting a replacement or designing a new installation.
Compare models in our HAWK high-pressure pumps category. For servicing, identify the complete model designation before selecting a repair kit.
