UDOR EUCW 13/20S
Code: 1205
Product detailed description

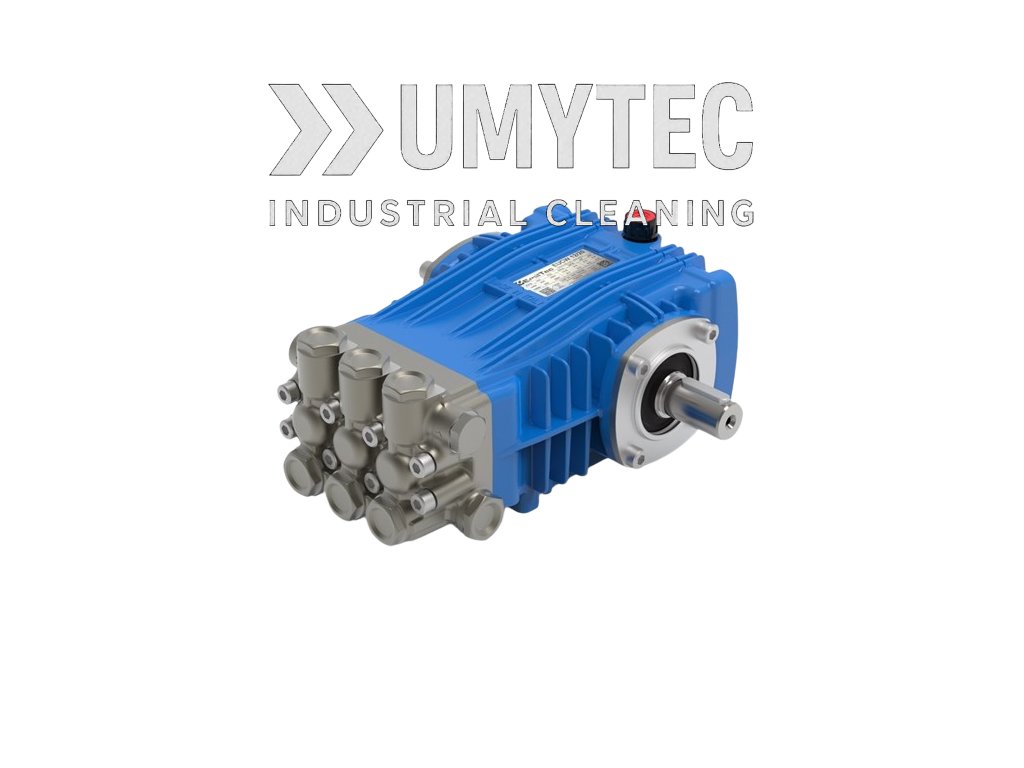

The UDOR 13/20S EUCW HIGH-PRESSURE PUMP is a professional-grade triplex plunger pump specifically designed for self-service car washes and chemical-resistant cleaning systems. Delivering 13 litres per minute at 200 bar with a standard working speed of 1450 RPM, this model offers reliable and efficient performance in continuous-use environments.
Constructed with chemical-resistant materials, including corrosion-resistant internal components and special seals, the 13/20S EUCW is optimized for systems using detergents, foaming agents, or reclaimed water. It’s ideally suited for:
-
Self-service car wash bays
-
Chemical spraying and dosing applications
-
Industrial cleaning systems requiring chemical compatibility
-
Fleet and equipment washdowns in harsh environments
Key Features:
-
High-strength ceramic plungers for reduced wear and heat resistance
-
Corrosion-resistant pump head designed for use with aggressive fluids
-
Compact, maintenance-friendly design for quick servicing
-
Built-in compatibility with electric motor drives
This pump is commonly integrated into car wash gantries, wall-mounted wash stations, and chemical cleaning units, delivering consistent pressure and long service life even under heavy daily use.
The Udor 13/20S EUCW is an excellent solution for operators in the automotive, municipal, and industrial cleaning sectors who require a durable, chemical-tolerant pump for high-pressure applications.
Additional parameters
| Category: | PUMPS |
|---|---|
| Weight: | 9 kg |
| Flow rate: | 12,5 L/min |
| Pressure Max: | 200 bar |
| RPM: | 1450 min |
| Power: | 4,9 kw |
UDOR: plunger and diaphragm pump expertise
UDOR is an Italian pump manufacturer based in Rubiera. Founded in 1966, the company designs and manufactures diaphragm and plunger pumps for water and application-specific liquids at low, medium and high pressure.
Two pump technologies, different duties
UDOR diaphragm pumps are used in spraying and chemical or agricultural applications, while its plunger pumps serve high-pressure cleaning and water jetting. The distinction matters: the correct technology depends on the liquid, required pressure and working conditions.
- Plunger pumps for pressure washing and industrial cleaning.
- Diaphragm pumps for agricultural spraying and compatible chemical solutions.
- Application-specific pumps for firefighting and de-icing systems.
- Motorpump units, mounting options and pressure regulation accessories.
Choosing and maintaining a UDOR pump
Select the pump by operating pressure, flow rate, speed and drive connection. Verify compatibility of the head, diaphragms or seals with the liquid being pumped. For service work, use the full model designation and the manufacturer’s exploded drawing to identify replacement components.
Compare our UDOR high-pressure pumps for professional cleaning installations and replacement projects.
