UDOR CC 30/20 S
Code: 1458
Product detailed description

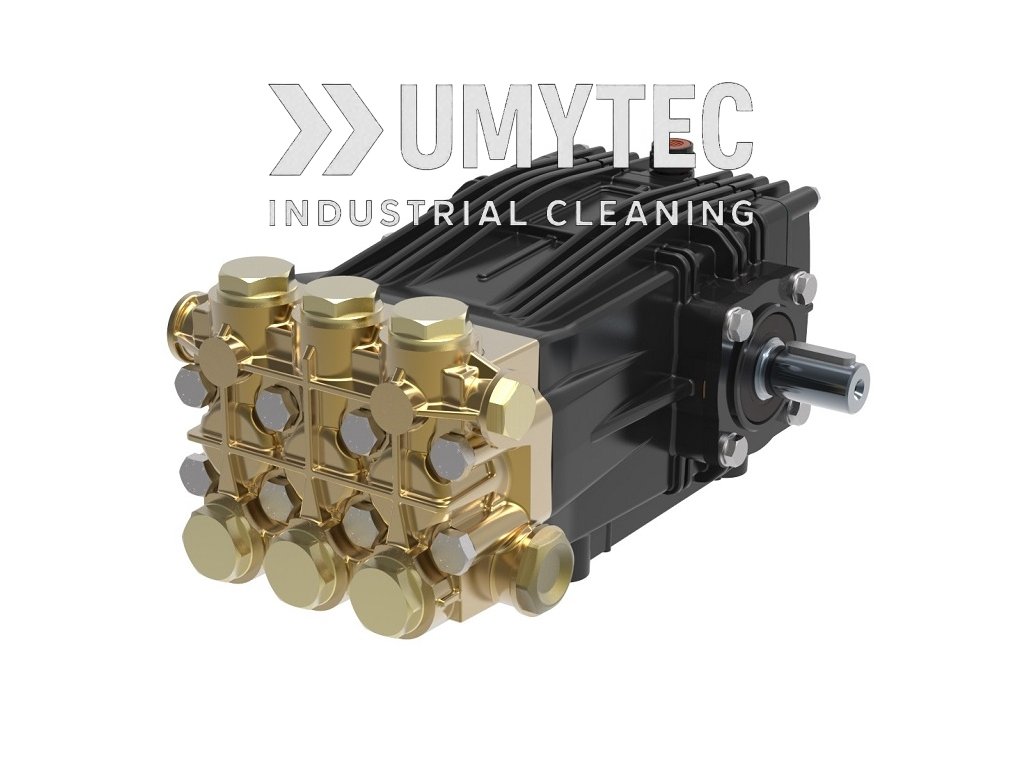

UDOR CC 30/20 S high-pressure pump
The CC 30/20 S is a C-series triplex plunger pump with a 24 mm cylindrical male shaft. Its rated flow is 30 L/min at 1450 rpm, with a maximum pressure of 200 bar.
Technical specifications
- Flow: 30 L/min.
- Maximum pressure: 200 bar.
- Speed: 1450 rpm.
- Maximum power requirement: 11.5 kW / 15.4 HP.
- Manufacturer code: 900000.
- Shaft: 24 mm cylindrical male shaft.
Construction
The C-series design uses three solid ceramic plungers, a reinforced forged-brass head, an aluminium crankcase with cataphoresis coating and a double sealing system.
Documentation and selection
Check the exact model code, operating point and mounting dimensions before replacing an existing pump. The CC 30/20 S male-shaft version must be distinguished from the CC 30/20 T MI hollow-shaft version.
Official UDOR C-series specifications and documentation
Additional parameters
| Category: | PUMPS |
|---|---|
| Weight: | 9 kg |
| Flow rate: | 30 L/min |
| Pressure Max: | 200 bar |
| RPM: | 1450 min |
| Power: | 11,5 kw |
UDOR: plunger and diaphragm pump expertise
UDOR is an Italian pump manufacturer based in Rubiera. Founded in 1966, the company designs and manufactures diaphragm and plunger pumps for water and application-specific liquids at low, medium and high pressure.
Two pump technologies, different duties
UDOR diaphragm pumps are used in spraying and chemical or agricultural applications, while its plunger pumps serve high-pressure cleaning and water jetting. The distinction matters: the correct technology depends on the liquid, required pressure and working conditions.
- Plunger pumps for pressure washing and industrial cleaning.
- Diaphragm pumps for agricultural spraying and compatible chemical solutions.
- Application-specific pumps for firefighting and de-icing systems.
- Motorpump units, mounting options and pressure regulation accessories.
Choosing and maintaining a UDOR pump
Select the pump by operating pressure, flow rate, speed and drive connection. Verify compatibility of the head, diaphragms or seals with the liquid being pumped. For service work, use the full model designation and the manufacturer’s exploded drawing to identify replacement components.
