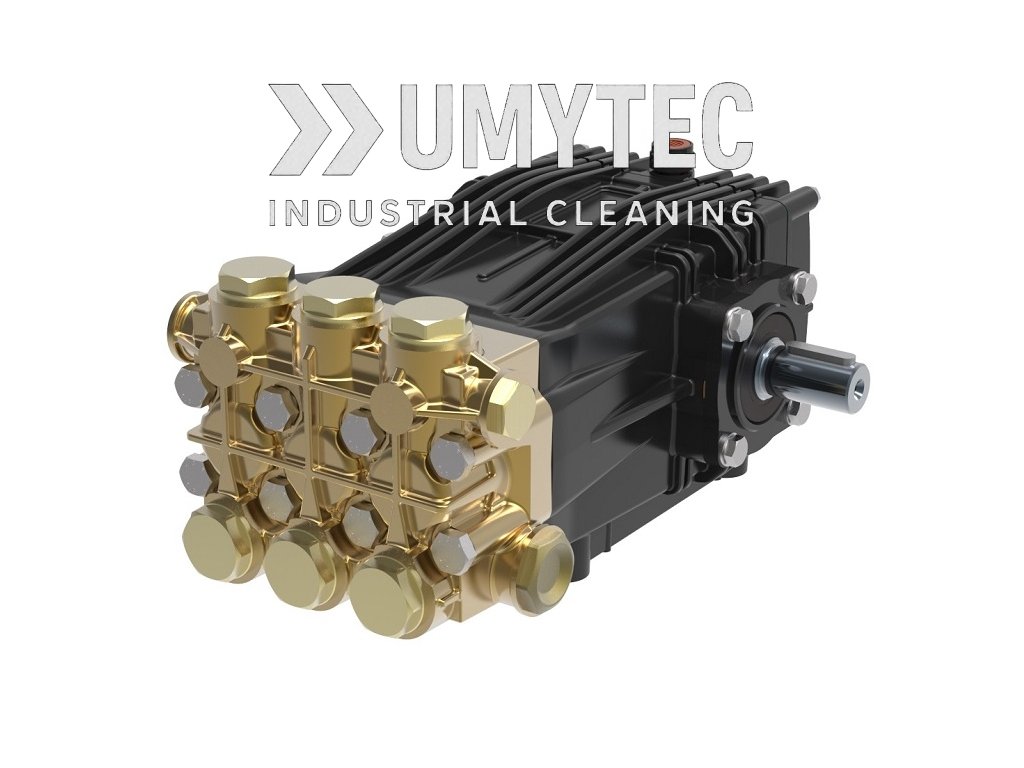

UDOR CC 42/17 S
Code: 1459
Product detailed description
UDOR CC 42/17 S technical data
- Flow rate: 44 L/min
- Maximum pressure: 170 bar
- Pump speed: 1450 rpm
- Manufacturer-rated power: 14.3 kW
Manufacturer code: 902900. This C-series pump has three ceramic plungers and a 24 mm male shaft.
Selection and documentation
Check the complete model code, shaft direction and installation dimensions before selecting a replacement.
Additional parameters
| Category: | PUMPS |
|---|---|
| Weight: | 9 kg |
| Flow rate: | 44 L/min |
| Pressure Max: | 170 bar |
| RPM: | 1450 min |
| Power: | 14,3 kw |
UDOR: plunger and diaphragm pump expertise
UDOR is an Italian pump manufacturer based in Rubiera. Founded in 1966, the company designs and manufactures diaphragm and plunger pumps for water and application-specific liquids at low, medium and high pressure.
Two pump technologies, different duties
UDOR diaphragm pumps are used in spraying and chemical or agricultural applications, while its plunger pumps serve high-pressure cleaning and water jetting. The distinction matters: the correct technology depends on the liquid, required pressure and working conditions.
- Plunger pumps for pressure washing and industrial cleaning.
- Diaphragm pumps for agricultural spraying and compatible chemical solutions.
- Application-specific pumps for firefighting and de-icing systems.
- Motorpump units, mounting options and pressure regulation accessories.
Choosing and maintaining a UDOR pump
Select the pump by operating pressure, flow rate, speed and drive connection. Verify compatibility of the head, diaphragms or seals with the liquid being pumped. For service work, use the full model designation and the manufacturer’s exploded drawing to identify replacement components.
Compare our UDOR high-pressure pumps for professional cleaning installations and replacement projects.
