UDOR GAMMA 202 TS 1C
Code: 1495
Product detailed description

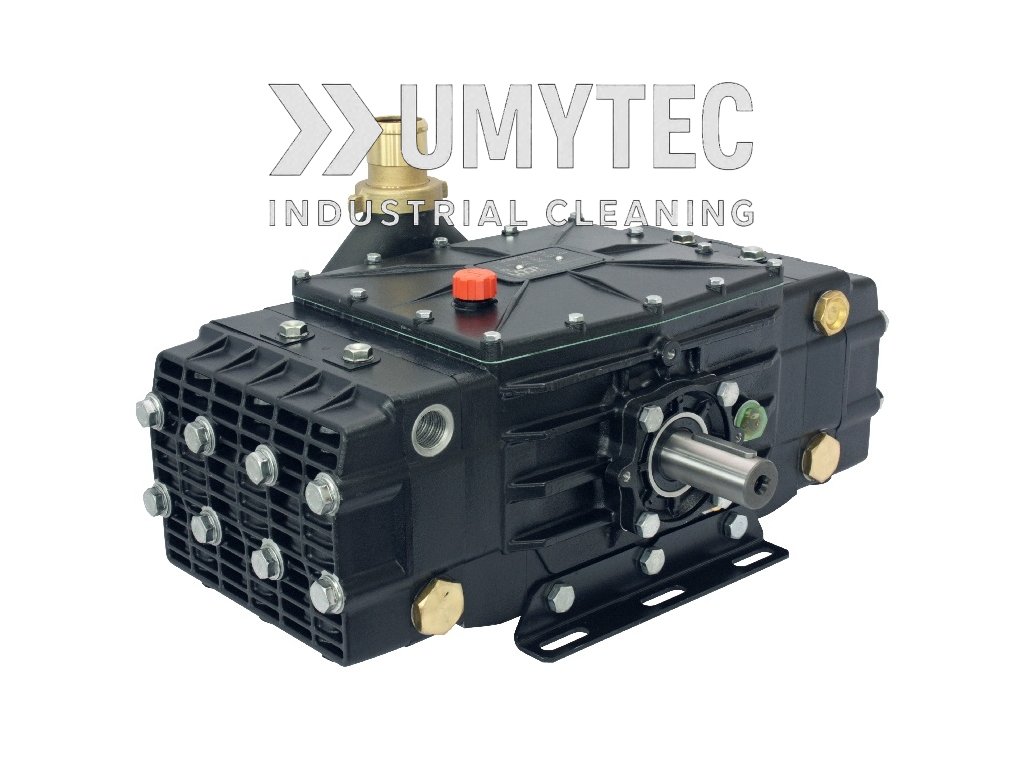

UDOR GAMMA 202 TS 1C
UDOR GAMMA 202 TS 1C plunger pump: 208 L/min at 600 rpm, maximum pressure 60 bar and manufacturer-rated power 23.9 kW.
| Flow rate | 208 L/min |
|---|---|
| Maximum pressure | 60 bar |
| Pump speed | 600 rpm |
| Manufacturer-rated power | 23.9 kW |
Check the complete pump code and installation dimensions when selecting a replacement.
Manufacturer documentation
Additional parameters
| Category: | PUMPS |
|---|---|
| Weight: | 9 kg |
| Flow rate: | 208 L/min |
| Pressure Max: | 60 bar |
| RPM: | 600 min |
| Power: | 23,9 kw |
UDOR: plunger and diaphragm pump expertise
UDOR is an Italian pump manufacturer based in Rubiera. Founded in 1966, the company designs and manufactures diaphragm and plunger pumps for water and application-specific liquids at low, medium and high pressure.
Two pump technologies, different duties
UDOR diaphragm pumps are used in spraying and chemical or agricultural applications, while its plunger pumps serve high-pressure cleaning and water jetting. The distinction matters: the correct technology depends on the liquid, required pressure and working conditions.
- Plunger pumps for pressure washing and industrial cleaning.
- Diaphragm pumps for agricultural spraying and compatible chemical solutions.
- Application-specific pumps for firefighting and de-icing systems.
- Motorpump units, mounting options and pressure regulation accessories.
Choosing and maintaining a UDOR pump
Select the pump by operating pressure, flow rate, speed and drive connection. Verify compatibility of the head, diaphragms or seals with the liquid being pumped. For service work, use the full model designation and the manufacturer’s exploded drawing to identify replacement components.
Compare our UDOR high-pressure pumps for professional cleaning installations and replacement projects.
