Interpump WS202
Code: 1415
Product detailed description

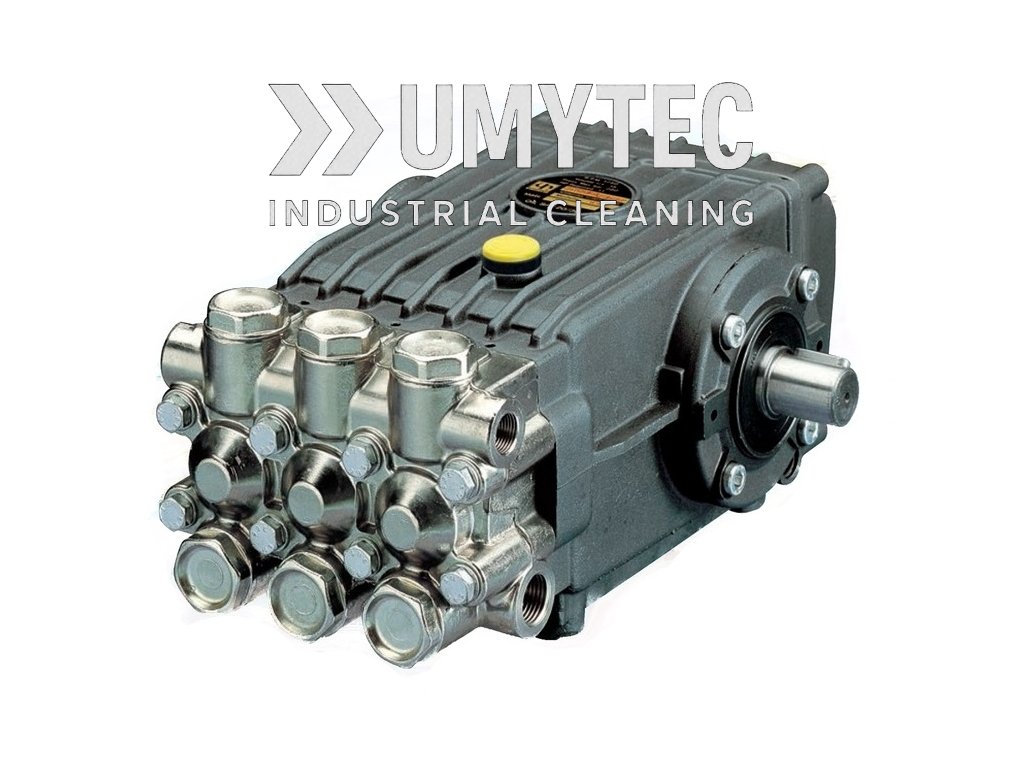

Interpump WS202 high-pressure plunger pump
The Interpump WS202 delivers 21 L/min at a maximum pressure of 200 bar and 1450 RPM. Its official power rating is 7.35 kW (10 hp). The pump measures 317.5 × 236 × 180 mm and weighs 14.5 kg.
Verified technical specifications
- Flow: 21 L/min (5.55 US gpm)
- Maximum pressure: 200 bar (20 MPa / 2900 psi)
- Speed: 1450 RPM
- Power: 7.35 kW (10 hp)
- Dimensions: 317.5 × 236 × 180 mm
- Weight: 14.5 kg
Compare operating points
For 21 L/min at a lower maximum pressure of 100 bar, compare the Interpump WS102. For a higher flow of 30 L/min at 200 bar, compare the Interpump W2030. All ratings are at 1450 rpm. Check drive power and mounting compatibility before choosing another model.
Official Interpump documentation
- Dimensions and shaft drawing (PDF) — manufacturer reference configuration: male shaft with hole and key.
- Interpump WS202 technical data and documents — performance curve, manuals, CAD files and spare-parts list.
Confirm the supplied shaft configuration and installation dimensions before ordering.
Compare more Interpump high-pressure pumps or review the official Interpump WS202 specifications.
Additional parameters
| Category: | PUMPS |
|---|---|
| Flow rate: | 21 L/min |
| Pressure Max: | 200 bar |
| RPM: | 1450 rpm |
| Power: | 7.35 kW / 10 hp |
Interpump: Italian high-pressure pump engineering
Interpump is an Italian name in professional high-pressure piston and plunger pumps. Its development of compact pumps with ceramic pistons helped shape modern pressure washing equipment. Today, the brand serves equipment manufacturers, service companies and operators of industrial cleaning installations.
Technology and applications
Interpump pumps are used to deliver pressurised water in professional washing and industrial systems. The wider Interpump Group also operates in water jetting and hydraulics, while the pump brand is particularly relevant to pressure washers, vehicle washing and industrial cleaning.
- High-pressure plunger pumps for professional cleaning equipment.
- Pumping solutions for car wash installations and industrial washing.
- Application-specific pump configurations and service components.
Selecting a pump or replacement parts
Check rated flow, pressure, rotational speed, inlet temperature and drive arrangement against the intended duty. Similar-looking pumps can have different shafts, mounting dimensions and seal specifications. The complete model code and parts diagram are therefore essential when ordering service kits or replacing an existing unit.
Visit our Interpump high-pressure pumps category to compare the available models and their technical specifications.
