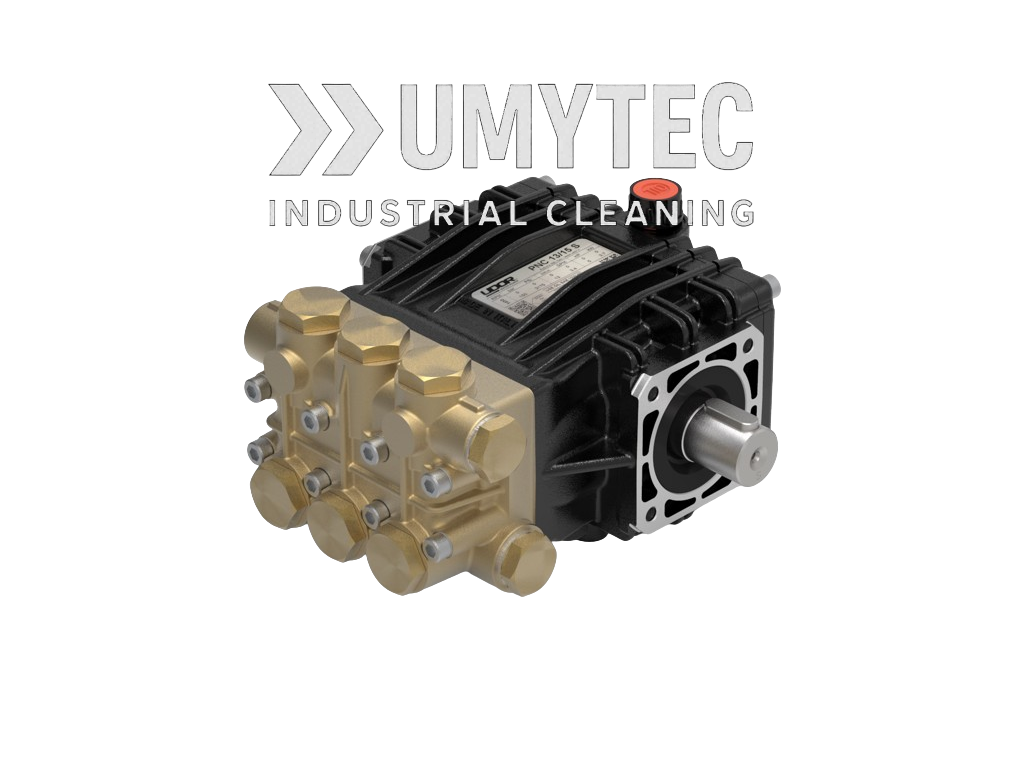

Match the complete reference, drive speed, shaft, mounting and connections to your installation. Where two operating speeds are listed, use the corresponding flow and power values. The photograph illustrates this pump series; the supplied execution follows the selected reference.

View all UDOR PN series models → · Technical selection support →

Additional parameters

Category:	UDOR PN series
Flow rate:	Up to 10 L/min
Pressure Max:	Up to 150 bar
Manifold:	brass
PTO:	male shaft Ø 24 mm
Centering:	90/75
RPM:	1450
FLOW RATE (L/MIN):	4
MAX PRESSURE (BAR):	100
MAX POWER (KW):	0,7
Catalogue reference:	14959800
Flow rate — exact values:	4 L/min
Maximum pressure — exact values:	100 bar

UDOR: plunger and diaphragm pump expertise

UDOR is an Italian pump manufacturer based in Rubiera. Founded in 1966, the company designs and manufactures diaphragm and plunger pumps for water and application-specific liquids at low, medium and high pressure.

Two pump technologies, different duties

UDOR diaphragm pumps are used in spraying and chemical or agricultural applications, while its plunger pumps serve high-pressure cleaning and water jetting. The distinction matters: the correct technology depends on the liquid, required pressure and working conditions.

Plunger pumps for pressure washing and industrial cleaning.
Diaphragm pumps for agricultural spraying and compatible chemical solutions.
Application-specific pumps for firefighting and de-icing systems.
Motorpump units, mounting options and pressure regulation accessories.

Choosing and maintaining a UDOR pump

Select the pump by operating pressure, flow rate, speed and drive connection. Verify compatibility of the head, diaphragms or seals with the liquid being pumped. For service work, use the full model designation and the manufacturer’s exploded drawing to identify replacement components.
