HAWK XLT3020HTI
Code: 1504
Product detailed description

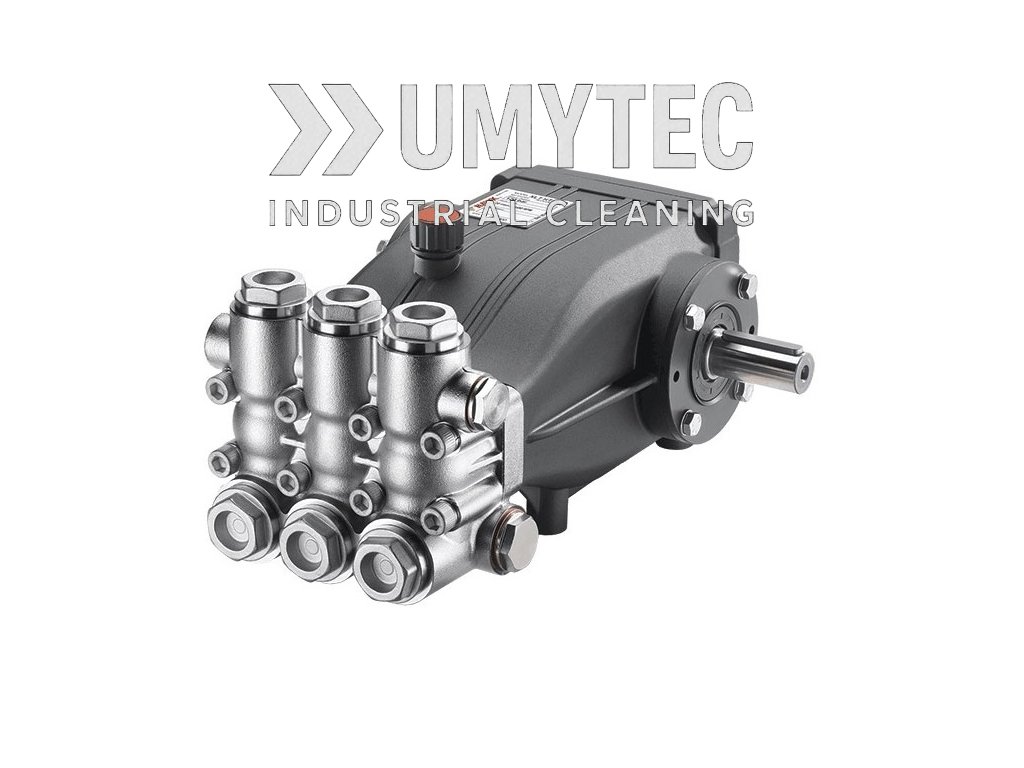

HAWK XLT3020HTI hot-water plunger pump
The XLT3020HTI belongs to the HAWK XLTI High Temperature series. It delivers 30 L/min at up to 200 bar at 1450 rpm. Special seals and a nickel-plated manifold support washing systems using water up to 85 °C, including food-industry applications.
Performance at 50 Hz and 60 Hz
| Parameter | 50 Hz | 60 Hz |
|---|---|---|
| Flow rate | 30 L/min | 36 L/min |
| Maximum pressure | 200 bar | 200 bar |
| Pump speed | 1450 rpm | 1740 rpm |
| Manufacturer-listed power | 11.3 kW | 13.6 kW |
The frequency columns describe the corresponding pump operating speeds. Select the drive using the required operating point, absorbed power, mounting and coupling dimensions; motor compatibility is not determined by frequency alone.
Technical details
- Maximum water temperature: 85 °C.
- Inlet: G 3/4; outlet: G 1/2.
- Shaft diameter: 24 mm.
- Technical net weight: 17.8 kg.
- Crankcase oil capacity: 1.2 litres.
- Special high-temperature seals and nickel-plated manifold.
Left and right shaft versions
| Execution | Model | Manufacturer code |
|---|---|---|
| Left shaft | XLT3020HTIL | 1.099-328.0 |
| Right shaft | XLT3020HTIR | 1.099-329.0 |
This listing does not offer separate IL/IR selectable variants. Confirm the required shaft execution and its availability with UMYTEC before ordering. The table does not mean that both versions are held in stock.
Application and selection
HAWK identifies food-industry washing and other hot-water washing systems as applications for this series. Check inlet conditions, water quality, temperature, bypass design and compatibility of all wetted components for the actual installation. A high-temperature rating is not a general approval for chemical dosing, pharmaceutical processing or CIP.
Compare HAWK high-pressure pumps and consult the official HAWK XLTI High Temperature specifications and technical documents.
For a comparison of standard models, see the HAWK XLTI selection guide.
Additional parameters
| Category: | PUMPS |
|---|---|
| Flow rate: | 30 L/min |
| Pressure Max: | 200 bar |
| RPM: | 1450 /min |
| Power: | 11,3 kW |
HAWK: high-pressure pump technology
HAWK specialises in high-pressure plunger pumps for professional cleaning and industrial water systems. Manufactured by Leuco in Italy, the brand covers a wide range of duties, from compact pressure washers to vehicle washing installations and demanding industrial cleaning equipment.
Product range and applications
The HAWK range includes pumps for pressure washing, car washes, municipal cleaning, misting and firefighting. Dedicated configurations also serve food processing, reverse osmosis and chemical applications. These uses require different materials and operating conditions, so suitability depends on the specific pump series.
- High-pressure pumps for professional pressure washers and industrial cleaning.
- Car wash configurations for self-service bays and automatic washing systems.
- Compact misting pumps and higher-flow pumps for mobile equipment.
- Accessories and service components for pump installation and maintenance.
Choosing a HAWK pump
Match flow rate, operating pressure, shaft arrangement and rotational speed to the drive and cleaning system. Inlet temperature, water quality and seal compatibility are equally important when selecting a replacement or designing a new installation.
Compare models in our HAWK high-pressure pumps category. For servicing, identify the complete model designation before selecting a repair kit.
