ANNOVI REVERBERI 15.20 H N
Code: 1381
Product detailed description

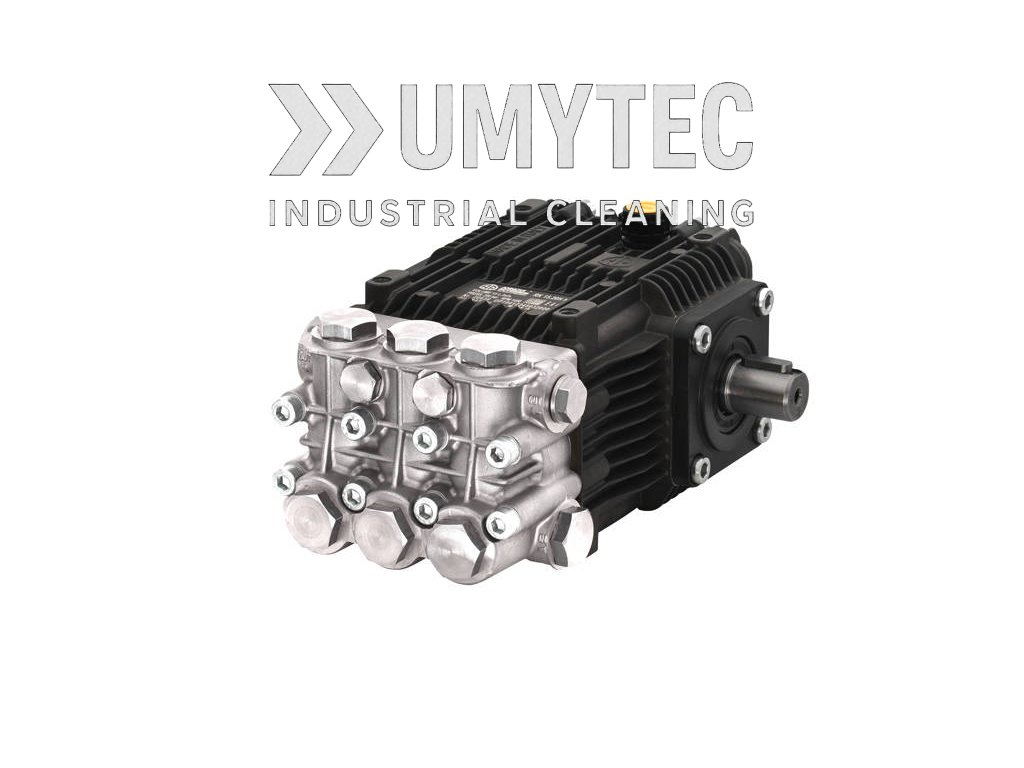

The Annovi Reverberi RK 15.20 H N is a triplex plunger pump rated for 15 L/min at 200 bar. It runs at 1450 rpm and requires 5.5 kW (7.5 hp).
Verified technical specifications
- Flow rate: 15 L/min / 3.96 US gpm
- Maximum pressure: 200 bar / 2900 psi
- Speed: 1450 rpm
- Power requirement: 5.5 kW / 7.5 hp
- Technical net weight: 9 kg
- Manufacturer code: 20638
The model uses ceramic pistons and a brass pump head. Confirm system connections and drive requirements before ordering. Review the official Annovi Reverberi RK 15.20 H N data.
Additional parameters
| Category: | PUMPS |
|---|---|
| Weight: | 9.5 kg |
| Flow rate: | 15 L/min |
| Pressure Max: | 200 bar |
| RPM: | 1450 rpm |
| Power: | 5.5 kW / 7.5 hp |
Annovi Reverberi: pumps for cleaning and spraying
Annovi Reverberi, also known as AR, is an Italian manufacturer of pumping equipment. The brand combines high-pressure plunger pumps for washing with diaphragm pump technology for spraying and agricultural applications. Its wider activities also include pressure washers.
Product range and applications
AR pumps are used in professional cleaning machines, vehicle washing systems and industrial installations. The diaphragm pump range serves spraying duties where the pumped liquid and diaphragm material must be matched. These different product families address distinct flow, pressure and chemical compatibility requirements.
Selection and system integration
For a pump replacement, compare operating pressure, flow, speed, shaft dimensions and mounting pattern. For maintenance, select seals, valves and other components from the parts drawing for the exact model. Matching the brand name alone is insufficient to identify a repair kit.
