FOAM NOZZLE INOX
Code: 2329
Original products
from top manufacturers
Complete range
for industrial cleaning
Product detailed description

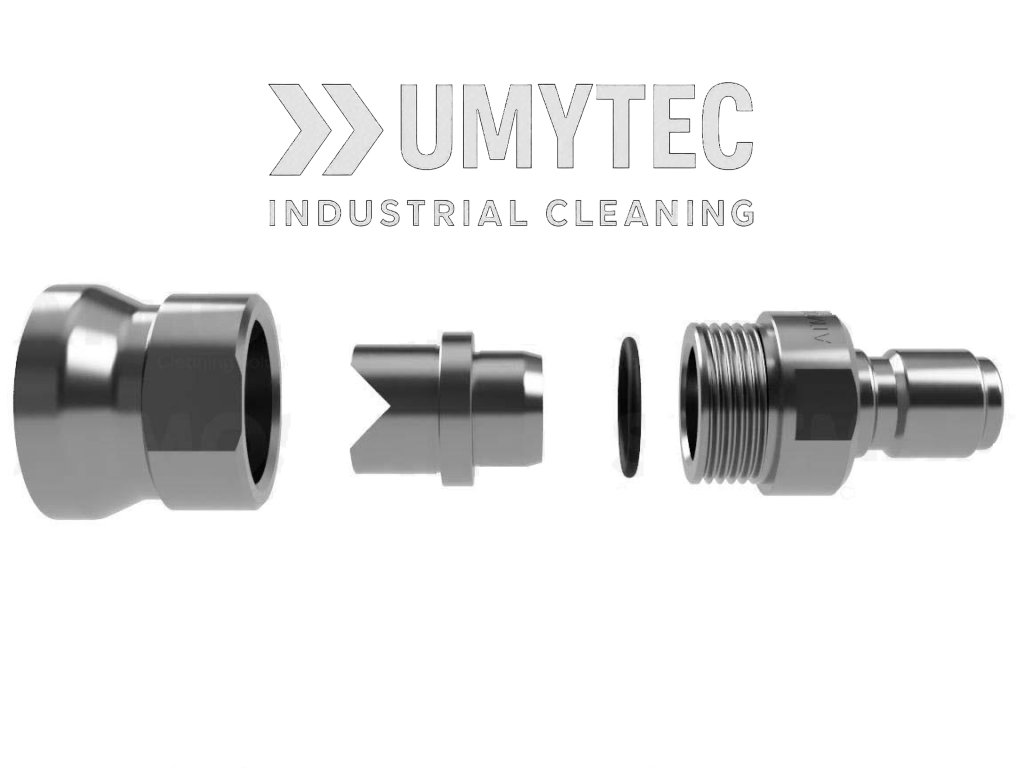

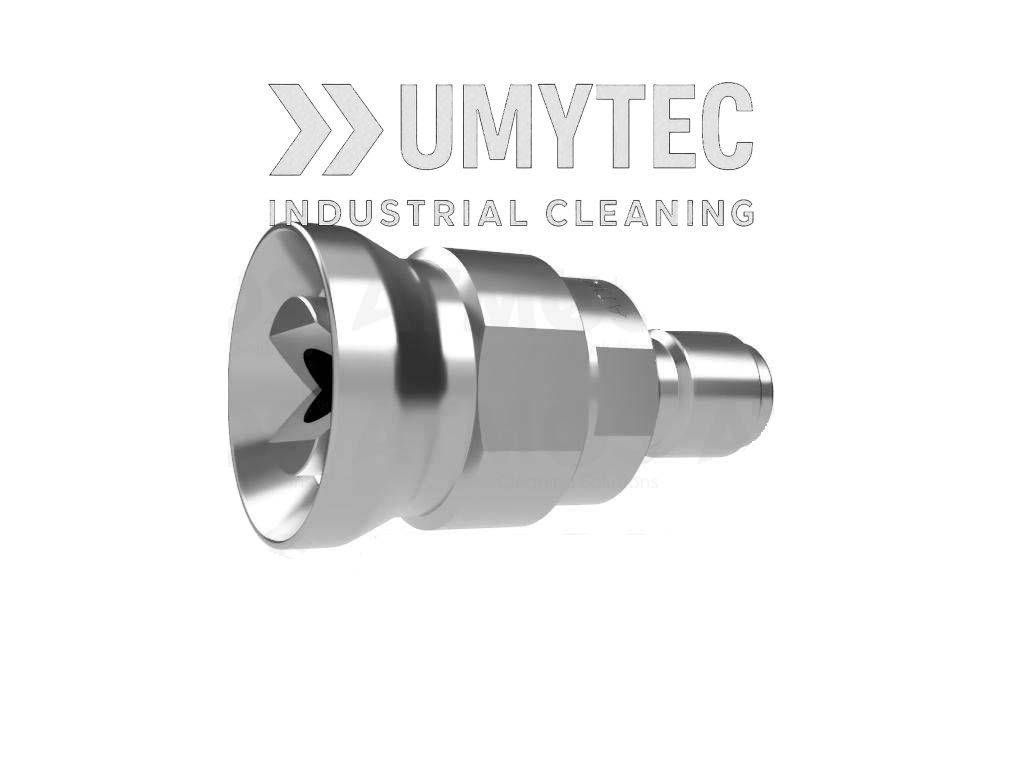

Stainless steel foam nozzle with ST-200 connection
This stainless steel foam nozzle is an outlet accessory for applying cleaning foam with a compatible foam-cleaning system. Its ST-200 connection allows it to be matched to equipment using the same coupling profile.
Selecting a foam nozzle
The listed limits are 50 bar and 100 °C. Check the complete foam system, including the gun, hose and couplings, because the lowest component limit governs the assembly. Match the nozzle to the required flow and the foam-producing equipment. The nozzle is an application accessory; chemical metering and any compressed-air supply must be provided by the compatible system.
Technical data
| Max pressure (bar) | 50 |
|---|---|
| Max temperature (°C) | 100 |
| Inlet | ST-200 |
Before ordering
For help choosing the correct version, provide the connection details and operating conditions of your existing cleaning system.
Additional parameters
| Category: | Nozzles |
|---|---|
| Max pressure (bar): | 50 |
| Max temperature (°C): | 100 |
| Inlet: | ST-200 |
