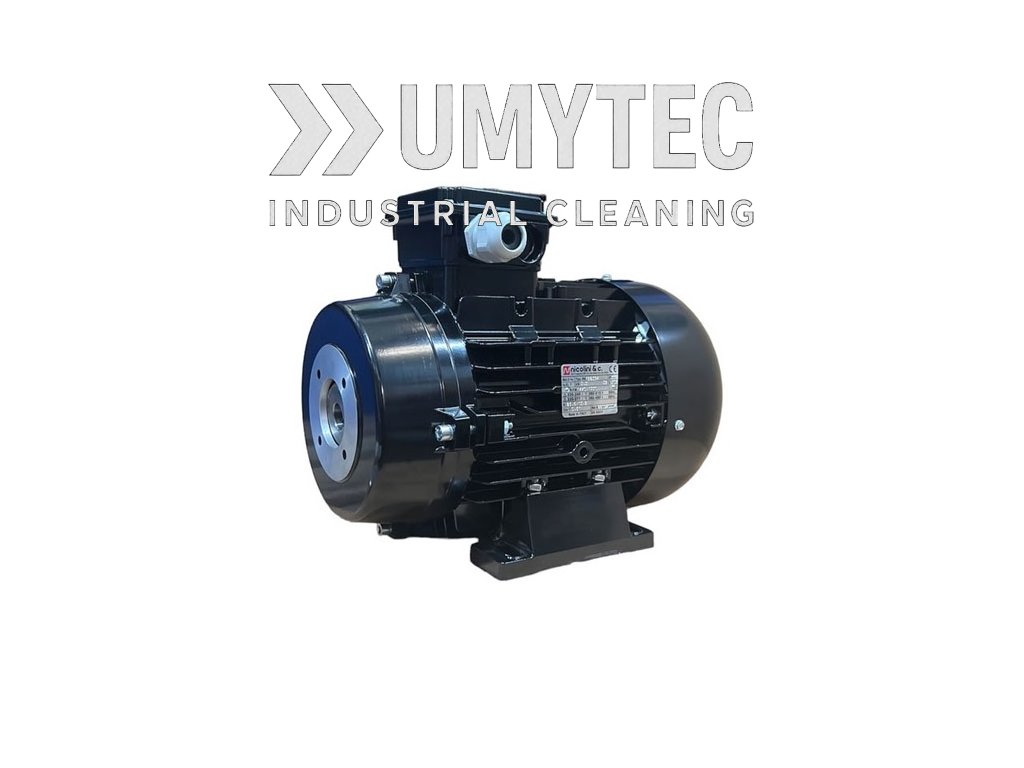

ELECTRIC MOTOR DF SERIES - 3 PHASE - NICOLINI
Code: 1648
Product detailed description
The Nicolini electric motor with a double flange design offers a smart, compact solution for pump drive systems by integrating the benefits of a hollow shaft with the functionality of a traditional flexible coupling. This space-efficient configuration simplifies installation, reduces system costs, and enhances maintenance accessibility.
The front flange includes a bearing that protects the motor from pump-induced loads and vibrations. The rear flange supports the pump and houses a flexible coupling, ensuring smooth and efficient torque transmission without the need for external coupler assemblies.
This motor is an ideal alternative to conventional setups using a separate coupling and flange. It is especially suitable for professional high-pressure systems, industrial cleaning machines, and applications where installation space is limited.
Features:
-
Design: double-flange motor
-
Advantages: compact, easy to install and service
-
Construction: front bearing support, rear coupling housing
-
Applications: plunger pumps, pressure systems, industrial cleaners
-
Benefit: replaces traditional coupling and flange assemblies
Additional parameters
| Category: | MOTORS |
|---|---|
| Supply voltage: | 230/400 |
| Frequency: | 50Hz |
| RPM: | 1450 /min |
| Type: | B3 with integrated coupling |
| Power: | 5,5kw |
| Cover: | Mec 112 |
Nicolini: electric motors for industrial equipment
Nicolini develops electric motors for machine builders and industrial applications. The company focuses on integrating the motor with the requirements of the driven equipment, including pump installations and purpose-built machinery.
Product range and applications
Its range includes asynchronous electric motors and solutions with integrated electronics. Different configurations address the mechanical interface, electrical supply and operating requirements of the machine. In a pump assembly, the motor must provide sufficient power at the speed required by the pump.
Selection and system integration
Check rated power, rotational speed, voltage, phase and frequency, then compare the frame size, mounting form and shaft dimensions. Also verify the duty and environmental protection required by the installation. A motor with the right kilowatt rating may still be unsuitable if its speed or mechanical interface differs.
