DOUBLE INJECTOR ST-164 + COMPRESSED AIR (ST-161 DOSING)
Code: 2348
Product detailed description

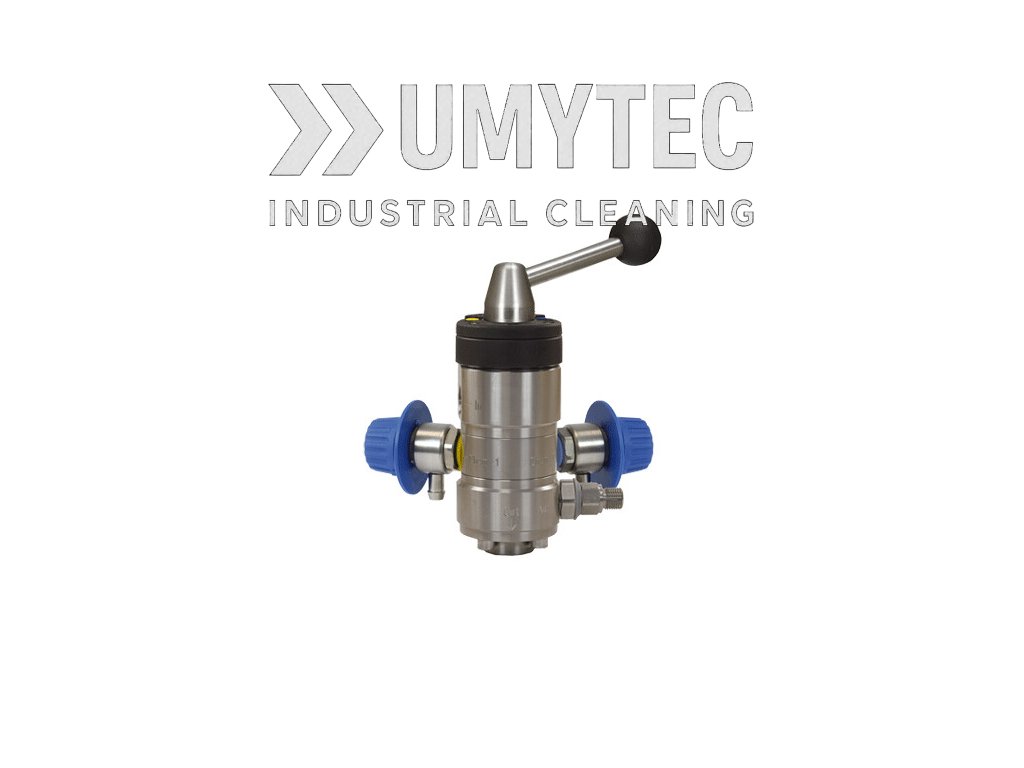

R+M Suttner ST-164 double chemical injector with compressed-air connection
R+M Suttner ST-164 double chemical injector with a compressed-air connection. Two 9 mm hose tails for chemical suction. Chemical dosing is adjusted using ST-161 metering valves. Injector nozzle sizes 1.3–2.8 mm are available on request.
Dosing configuration
The ST-161 metering valves provide adjustment of chemical suction. This is the valve-controlled dosing version; select it when you need this adjustment method in your cleaning installation.
The two chemical suction connections distinguish the ST-164 from a single-suction injector. Follow the operating manual for chemical selection and switching; the presence of two connections does not establish that different chemicals may be mixed together.
Foam-system connection
This version includes a separate compressed-air connection for a compatible foam application. Select the air supply and downstream foam accessories according to the installation requirements and operating manual.
Technical data
| Inlet | 3/8" F |
|---|---|
| Outlet | 1/2" F |
| Max pressure (bar) | 350 |
| Max temperature (°C) | 100 |
| Compressed air module | 1/4" M |
Before ordering
Confirm the injector nozzle size using the actual water flow and operating conditions. Check chemical compatibility and verify the resulting dilution during commissioning; a metering setting alone does not guarantee a fixed concentration.
Operating manual
For more details please find user manual here ST164 User Manual
Additional parameters
| Category: | Injectors |
|---|---|
| Inlet: | 3/8" F |
| Outlet: | 1/2" F |
| Max pressure (bar): | 350 |
| Max temperature (°C): | 100 |
| Compressed air module: | 1/4" M |
