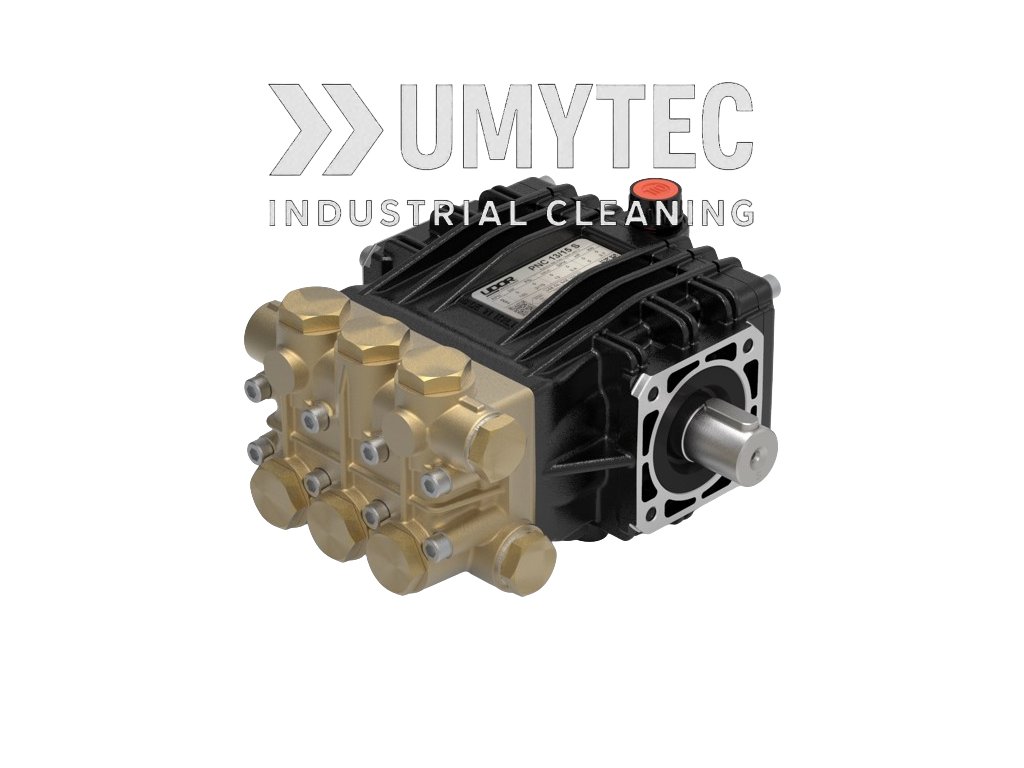

UDOR PNC 13/12 S
Code: 1356
Product detailed description
The UDOR PNC 13/12 S HIGH-PRESSURE PUMP is a compact, professional-grade triplex plunger pump built for single-phase electric motor applications. Delivering 13 litres per minute at 120 bar with a rotational speed of 1450 RPM, it offers a reliable solution for medium-duty pressure washing in commercial, workshop, and agricultural environments.
Constructed with ceramic pistons, a brass pump head, and reinforced seals, the PNC 13/12 S is engineered to deliver long-lasting performance with minimal maintenance, even in frequent-use applications. Its compact footprint makes it ideal for portable or wall-mounted pressure washer systems where space and efficiency matter.
Ideal for:
-
Professional vehicle washing setups
-
Workshop and garage cleaning stations
-
Farm equipment and facility cleaning
-
Light industrial and commercial cleaning tasks
Key Features:
-
Flow rate: 13 L/min at 120 bar – ideal for medium-pressure cleaning
-
Triplex ceramic plungers for superior wear and heat resistance
-
Brass manifold for corrosion resistance
-
Optimized for 1450 RPM single-phase motor operation
-
Compact, quiet, and low-vibration design
-
Easy maintenance and high efficiency
The Udor PNC 13/12 S is widely used in automotive service centers, agricultural settings, and commercial pressure washer builds, delivering stable pressure, long operating life, and cost-effective performance for professional users.
Additional parameters
| Category: | PUMPS |
|---|---|
| Weight: | 9 kg |
| Flow rate: | 13 L/min |
| Pressure Max: | 120 bar |
| RPM: | 1450 min |
| Power: | 3 kw |
UDOR: plunger and diaphragm pump expertise
UDOR is an Italian pump manufacturer based in Rubiera. Founded in 1966, the company designs and manufactures diaphragm and plunger pumps for water and application-specific liquids at low, medium and high pressure.
Two pump technologies, different duties
UDOR diaphragm pumps are used in spraying and chemical or agricultural applications, while its plunger pumps serve high-pressure cleaning and water jetting. The distinction matters: the correct technology depends on the liquid, required pressure and working conditions.
- Plunger pumps for pressure washing and industrial cleaning.
- Diaphragm pumps for agricultural spraying and compatible chemical solutions.
- Application-specific pumps for firefighting and de-icing systems.
- Motorpump units, mounting options and pressure regulation accessories.
Choosing and maintaining a UDOR pump
Select the pump by operating pressure, flow rate, speed and drive connection. Verify compatibility of the head, diaphragms or seals with the liquid being pumped. For service work, use the full model designation and the manufacturer’s exploded drawing to identify replacement components.
Compare our UDOR high-pressure pumps for professional cleaning installations and replacement projects.
