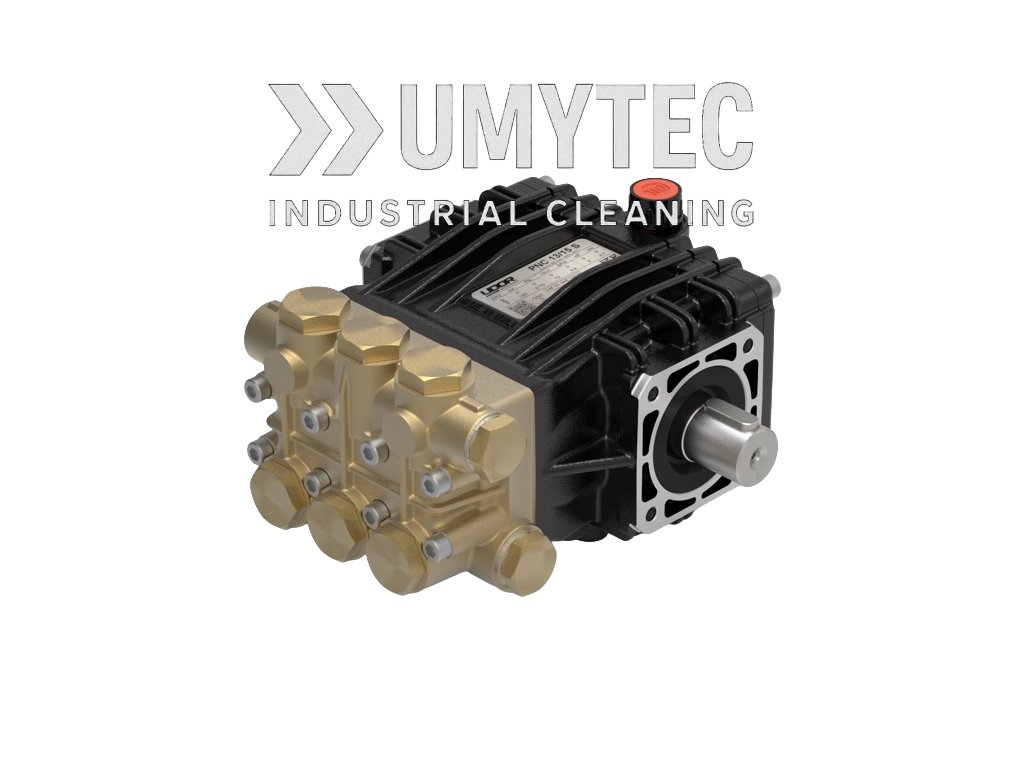

UDOR PNC 11/11 S
Code: 1343
Product detailed description
UDOR PNC 11/11 S technical specifications
- Manufacturer code: 950200
- Flow rate: 11 L/min
- Maximum pressure: 110 bar
- Speed: 1450 rpm
- Manufacturer-rated power: 2.3 kW / 3.1 hp
- Shaft: 24 mm cylindrical male shaft
The PN series uses three solid ceramic plungers, a reinforced forged brass head and a double sealing system. UDOR lists pressure washing and car wash among the series applications.
Before ordering
Match the complete pump code, shaft arrangement and installation dimensions to your equipment. Motor compatibility must be checked for the specific drive and mounting arrangement.
Manufacturer documentation
UDOR PN series: model specifications and documents
Additional parameters
| Category: | PUMPS |
|---|---|
| Weight: | 9 kg |
| Flow rate: | 11 L/min |
| Pressure Max: | 110 bar |
| RPM: | 1450 min |
| Power: | 2,3 kw |
UDOR: plunger and diaphragm pump expertise
UDOR is an Italian pump manufacturer based in Rubiera. Founded in 1966, the company designs and manufactures diaphragm and plunger pumps for water and application-specific liquids at low, medium and high pressure.
Two pump technologies, different duties
UDOR diaphragm pumps are used in spraying and chemical or agricultural applications, while its plunger pumps serve high-pressure cleaning and water jetting. The distinction matters: the correct technology depends on the liquid, required pressure and working conditions.
- Plunger pumps for pressure washing and industrial cleaning.
- Diaphragm pumps for agricultural spraying and compatible chemical solutions.
- Application-specific pumps for firefighting and de-icing systems.
- Motorpump units, mounting options and pressure regulation accessories.
Choosing and maintaining a UDOR pump
Select the pump by operating pressure, flow rate, speed and drive connection. Verify compatibility of the head, diaphragms or seals with the liquid being pumped. For service work, use the full model designation and the manufacturer’s exploded drawing to identify replacement components.
Compare our UDOR high-pressure pumps for professional cleaning installations and replacement projects.
