UDOR PNC 06/10 S
Code: 1355
Product detailed description

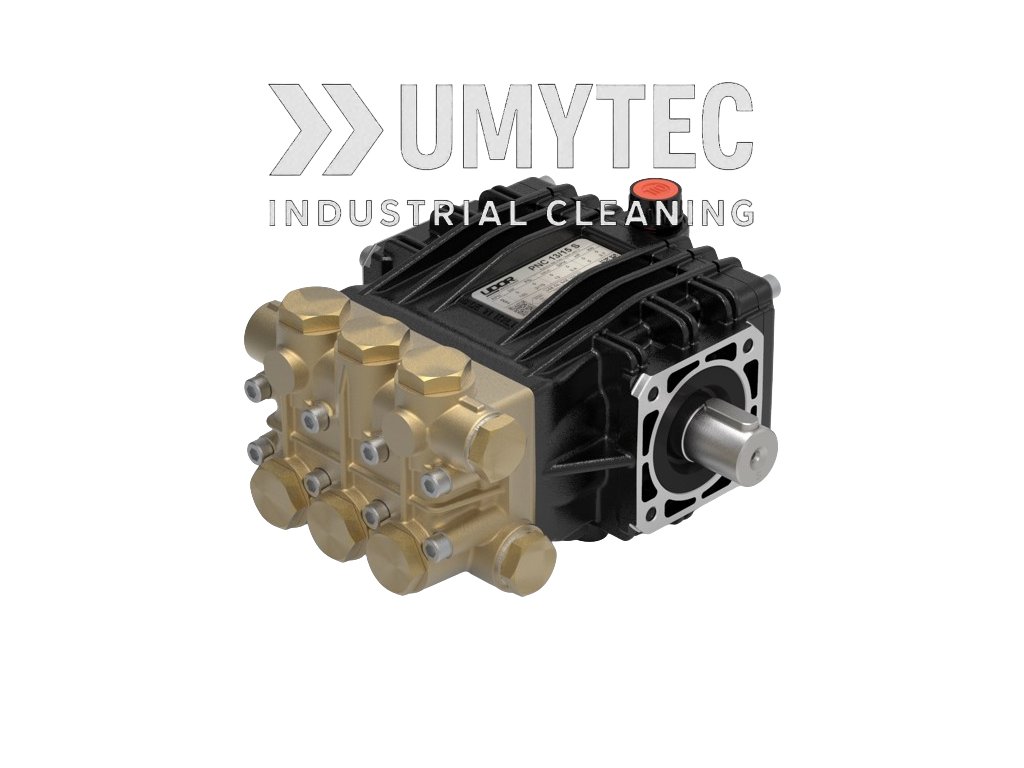

The UDOR PNC 06/10 S is a compact triplex plunger pump for high-pressure cleaning systems. At 1450 rpm it delivers 6 L/min at a maximum pressure of 100 bar and requires 1.1 kW (1.5 hp).
Verified technical specifications
- Flow: 6 L/min
- Maximum pressure: 100 bar
- Speed: 1450 rpm
- Power requirement: 1.1 kW / 1.5 hp
- Manufacturer code: 959900
- Shaft: Ø24 mm cylindrical male shaft
Construction and selection
The PN-series design uses three ceramic plungers, a forged-brass head and double seals. Select the motor, coupling and electrical supply from the complete installation requirements; this page does not claim universal compatibility with single-phase motors.
Compare this model with other UDOR high-pressure pumps, or review the official UDOR PN-series data.
Additional parameters
| Category: | PUMPS |
|---|---|
| Weight: | 9 kg |
| Flow rate: | 6 L/min |
| Pressure Max: | 100 bar |
| RPM: | 1450 rpm |
| Power: | 1.1 kW / 1.5 hp |
UDOR: High-Pressure Diaphragm and Plunger Pumps for Professional Applications
Umytec offers UDOR high-pressure pumps from UDOR, an Italian manufacturer specialized in high-pressure diaphragm and plunger pumps for industrial cleaning, car wash systems, agriculture, and water treatment applications.
Founded in 1966 in Rubiera, Italy, UDOR is recognized globally for its robust engineering, high reliability, and long service life. The company designs and produces a wide range of pumps capable of handling water, as well as water mixed with chemical additives, under low, medium, and high-pressure conditions.
Thanks to continuous development and strict quality control, UDOR pumps are widely used in demanding professional environments where performance stability and durability are essential.
Main product range
UDOR provides a comprehensive portfolio of pumping solutions:
- diaphragm pumps for spraying and chemical applications
- plunger (piston) high-pressure pumps for washing systems
- pumps for car wash installations and pressure washers
- solutions for sewer jetting and industrial cleaning
- pumps for agricultural spraying systems
- equipment for water treatment and reverse osmosis
- accessories, regulators, and pressure control components
Applications
UDOR pumps are used across a wide range of industries:
- self-service and professional car washes
- industrial cleaning systems
- agriculture and crop spraying
- municipal and fire-fighting systems
- construction and heavy-duty cleaning applications
- wastewater and sewer cleaning systems
- water treatment and filtration systems
