INTERPUMP WS 151
Code: 1416
Product detailed description

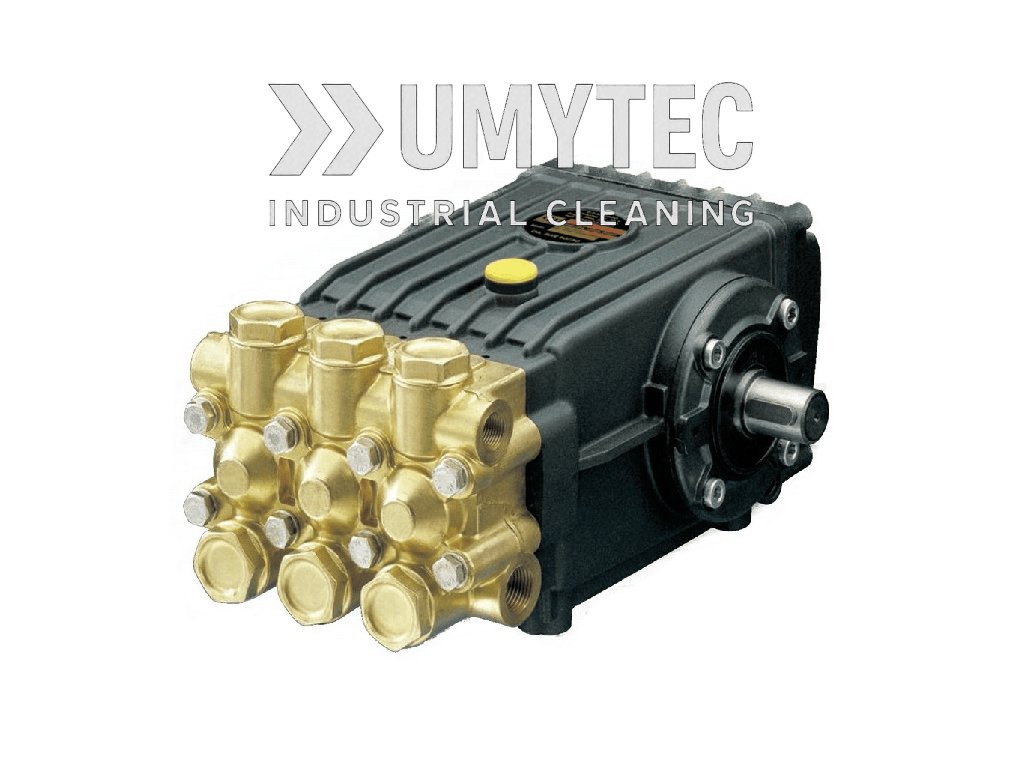

Interpump WS151 high-pressure pump
The Interpump WS151 is a male keyed-shaft pump rated for 15 L/min at 1450 rpm and a maximum pressure of 150 bar. Use the model-specific documentation when checking an existing installation or planning a replacement.
Technical specifications
- Flow rate: 15 L/min.
- Maximum pressure: 150 bar.
- Pump speed: 1450 rpm.
- Power requirement: 4.04 kW / 5.5 HP.
- Shaft configuration: male keyed shaft.
Installation checks
Match the pump speed, power requirement, shaft and mounting dimensions to the installation. A similar flow rate or pressure alone does not establish interchangeability with another pump.
Manufacturer documentation
The official Interpump WS151 product page provides technical data and links to the dimensional drawing, CAD, manuals, performance curve and spare-parts list. Use these model-specific documents before installation and maintenance.
Additional parameters
| Category: | PUMPS |
|---|---|
| Flow rate: | 15 L/min |
| Pressure Max: | 150 bar |
| RPM: | 1450 min |
| Power: | 4,04 kw |
Interpump: Italian high-pressure pump engineering
Interpump is an Italian name in professional high-pressure piston and plunger pumps. Its development of compact pumps with ceramic pistons helped shape modern pressure washing equipment. Today, the brand serves equipment manufacturers, service companies and operators of industrial cleaning installations.
Technology and applications
Interpump pumps are used to deliver pressurised water in professional washing and industrial systems. The wider Interpump Group also operates in water jetting and hydraulics, while the pump brand is particularly relevant to pressure washers, vehicle washing and industrial cleaning.
- High-pressure plunger pumps for professional cleaning equipment.
- Pumping solutions for car wash installations and industrial washing.
- Application-specific pump configurations and service components.
Selecting a pump or replacement parts
Check rated flow, pressure, rotational speed, inlet temperature and drive arrangement against the intended duty. Similar-looking pumps can have different shafts, mounting dimensions and seal specifications. The complete model code and parts diagram are therefore essential when ordering service kits or replacing an existing unit.
Visit our Interpump high-pressure pumps category to compare the available models and their technical specifications.
