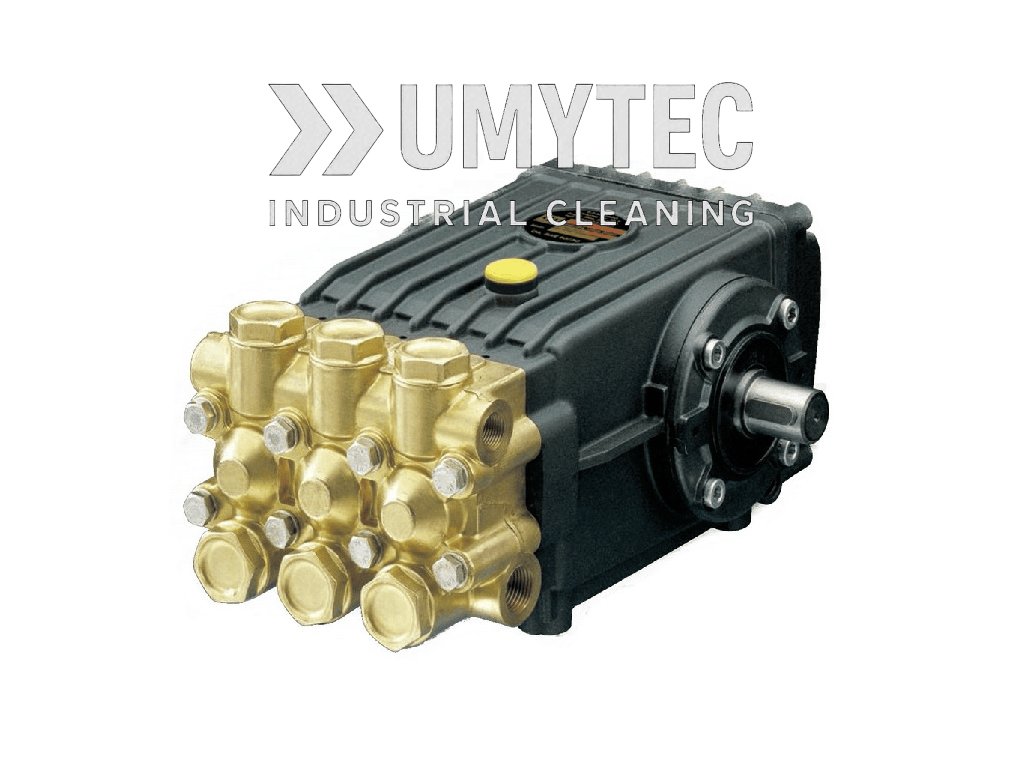

Interpump WS132
Code: 1417
Product detailed description
The Interpump WS132 is a high-pressure plunger pump rated for 18.7 L/min at 120 bar. It runs at 1450 rpm and requires 4.04 kW (5.5 hp).
Verified technical specifications
- Flow rate: 18.7 L/min / 4.94 US gpm
- Maximum pressure: 120 bar / 12 MPa / 1750 psi
- Speed: 1450 rpm
- Power requirement: 4.04 kW / 5.5 hp
- Dimensions: 317.5 × 236 × 180 mm
- Technical net weight: 14.5 kg
- Shaft documentation: male keyed shaft
Official dimensional drawings, CAD files, manuals, performance curves and the spare-parts list are available from Interpump. Compare the complete Interpump high-pressure pump range or review the official Interpump WS132 data.
Additional parameters
| Category: | PUMPS |
|---|---|
| Flow rate: | 18.7 L/min |
| Pressure Max: | 120 bar |
| RPM: | 1450 rpm |
| Power: | 4.04 kW / 5.5 hp |
Interpump: Italian high-pressure pump engineering
Interpump is an Italian name in professional high-pressure piston and plunger pumps. Its development of compact pumps with ceramic pistons helped shape modern pressure washing equipment. Today, the brand serves equipment manufacturers, service companies and operators of industrial cleaning installations.
Technology and applications
Interpump pumps are used to deliver pressurised water in professional washing and industrial systems. The wider Interpump Group also operates in water jetting and hydraulics, while the pump brand is particularly relevant to pressure washers, vehicle washing and industrial cleaning.
- High-pressure plunger pumps for professional cleaning equipment.
- Pumping solutions for car wash installations and industrial washing.
- Application-specific pump configurations and service components.
Selecting a pump or replacement parts
Check rated flow, pressure, rotational speed, inlet temperature and drive arrangement against the intended duty. Similar-looking pumps can have different shafts, mounting dimensions and seal specifications. The complete model code and parts diagram are therefore essential when ordering service kits or replacing an existing unit.
