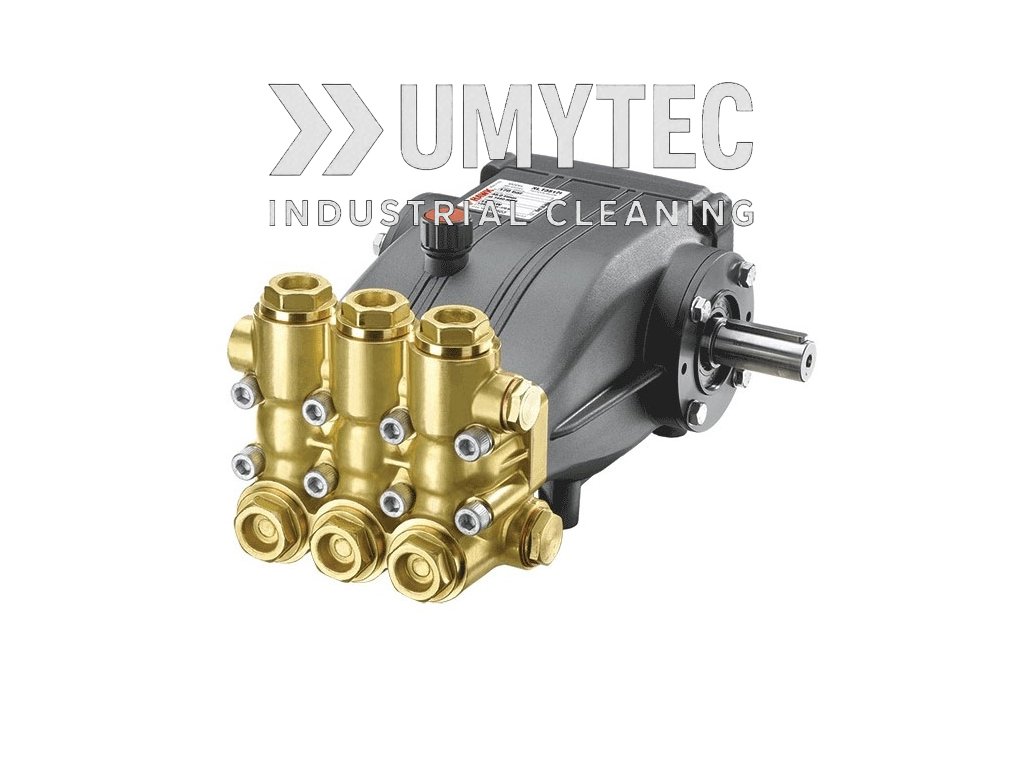

HAWK XXT5520I
Code: 1487
Product detailed description
HAWK XXT5520I technical data
- 50 Hz: 55 L/min, 1450 rpm, 21.2 kW
- 60 Hz: 66 L/min, 1740 rpm, 25.4 kW
- Maximum pressure: 200 bar
- Maximum water temperature: 65 °C
- Inlet G 1 inch; outlet G 3/4 inch
HAWK lists vehicle washing, municipal cleaning, misting and firefighting as XXT series applications.
Shaft versions
- Left: XXT5520IL — 1.099-140.0
- Right: XXT5520IR — 1.099-141.0
Check the complete model code, shaft direction and installation dimensions before selecting a replacement.
Manufacturer documentation
HAWK XXT technical sheet (PDF) · XXT series specifications
Additional parameters
| Category: | PUMPS |
|---|---|
| Flow rate: | 55 L/min |
| Pressure Max: | 200 bar |
| RPM: | 1450 /min |
| Power: | 21,2 kW |
HAWK: high-pressure pump technology
HAWK specialises in high-pressure plunger pumps for professional cleaning and industrial water systems. Manufactured by Leuco in Italy, the brand covers a wide range of duties, from compact pressure washers to vehicle washing installations and demanding industrial cleaning equipment.
Product range and applications
The HAWK range includes pumps for pressure washing, car washes, municipal cleaning, misting and firefighting. Dedicated configurations also serve food processing, reverse osmosis and chemical applications. These uses require different materials and operating conditions, so suitability depends on the specific pump series.
- High-pressure pumps for professional pressure washers and industrial cleaning.
- Car wash configurations for self-service bays and automatic washing systems.
- Compact misting pumps and higher-flow pumps for mobile equipment.
- Accessories and service components for pump installation and maintenance.
Choosing a HAWK pump
Match flow rate, operating pressure, shaft arrangement and rotational speed to the drive and cleaning system. Inlet temperature, water quality and seal compatibility are equally important when selecting a replacement or designing a new installation.
Compare models in our HAWK high-pressure pumps category. For servicing, identify the complete model designation before selecting a repair kit.
