HAWK PX1735
Code: 1486
Product detailed description

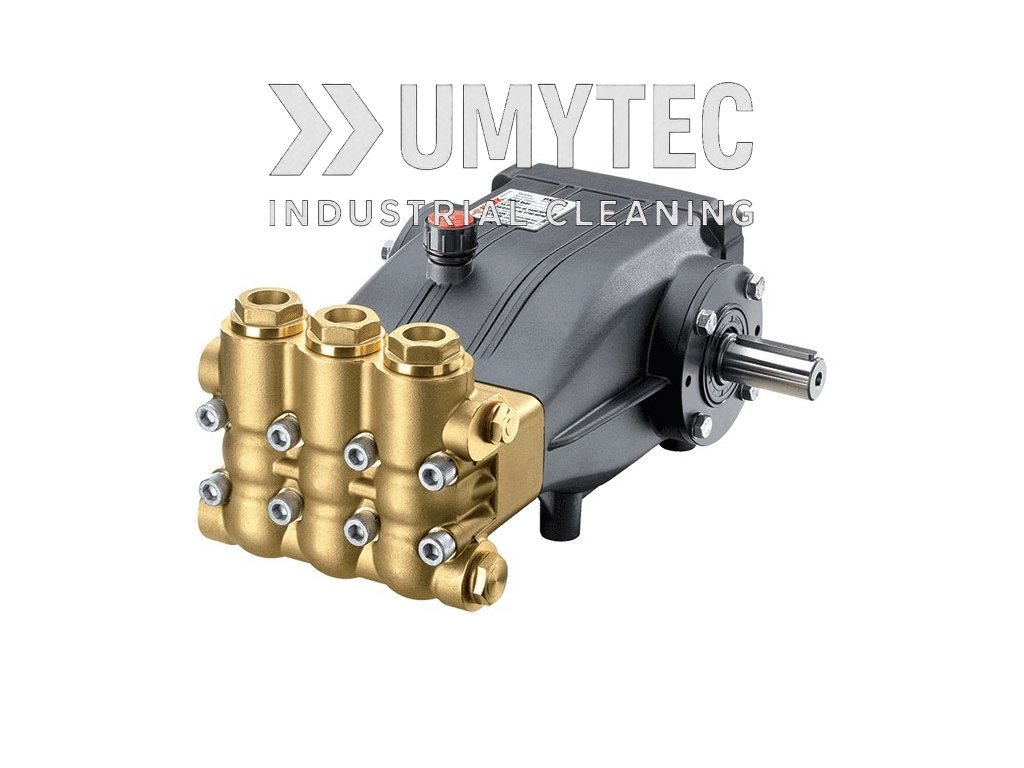

HAWK PX1735 high-pressure pump
The PX1735 belongs to the HAWK PXI 350 series for industrial cleaning and portable washing systems. HAWK positions this series for less intensive work.
Technical data
- At 1450 rpm (50 Hz): 17 L/min; maximum power 11.2 kW.
- At 1740 rpm (60 Hz): 20.3 L/min; maximum power 13.4 kW.
- Maximum pressure: 350 bar.
- Maximum water temperature: 65°C.
- Inlet G 1/2; outlet G 3/8.
- Oil capacity: 1.2 L; SAE 10W40.
The HAWK online table rounds flow to 17/20 L/min; the technical sheet specifies 16.9/20.3 L/min at 1450/1740 rpm. Performance values apply at the stated pump speeds.
Shaft versions
- PX1735IL: 1.099-149.0, left-hand shaft.
- PX1735IR: 1.099-150.0, right-hand shaft.
Confirm the required shaft side and complete model code before ordering.
Official documentation
HAWK PXI 350 technical sheet · Compare HAWK pumps
Additional parameters
| Category: | PUMPS |
|---|---|
| Flow rate: | 17 L/min |
| Pressure Max: | 350 bar |
| RPM: | 1450 /min |
| Power: | 11,2 kW |
HAWK: high-pressure pump technology
HAWK specialises in high-pressure plunger pumps for professional cleaning and industrial water systems. Manufactured by Leuco in Italy, the brand covers a wide range of duties, from compact pressure washers to vehicle washing installations and demanding industrial cleaning equipment.
Product range and applications
The HAWK range includes pumps for pressure washing, car washes, municipal cleaning, misting and firefighting. Dedicated configurations also serve food processing, reverse osmosis and chemical applications. These uses require different materials and operating conditions, so suitability depends on the specific pump series.
- High-pressure pumps for professional pressure washers and industrial cleaning.
- Car wash configurations for self-service bays and automatic washing systems.
- Compact misting pumps and higher-flow pumps for mobile equipment.
- Accessories and service components for pump installation and maintenance.
Choosing a HAWK pump
Match flow rate, operating pressure, shaft arrangement and rotational speed to the drive and cleaning system. Inlet temperature, water quality and seal compatibility are equally important when selecting a replacement or designing a new installation.
Compare models in our HAWK high-pressure pumps category. For servicing, identify the complete model designation before selecting a repair kit.
