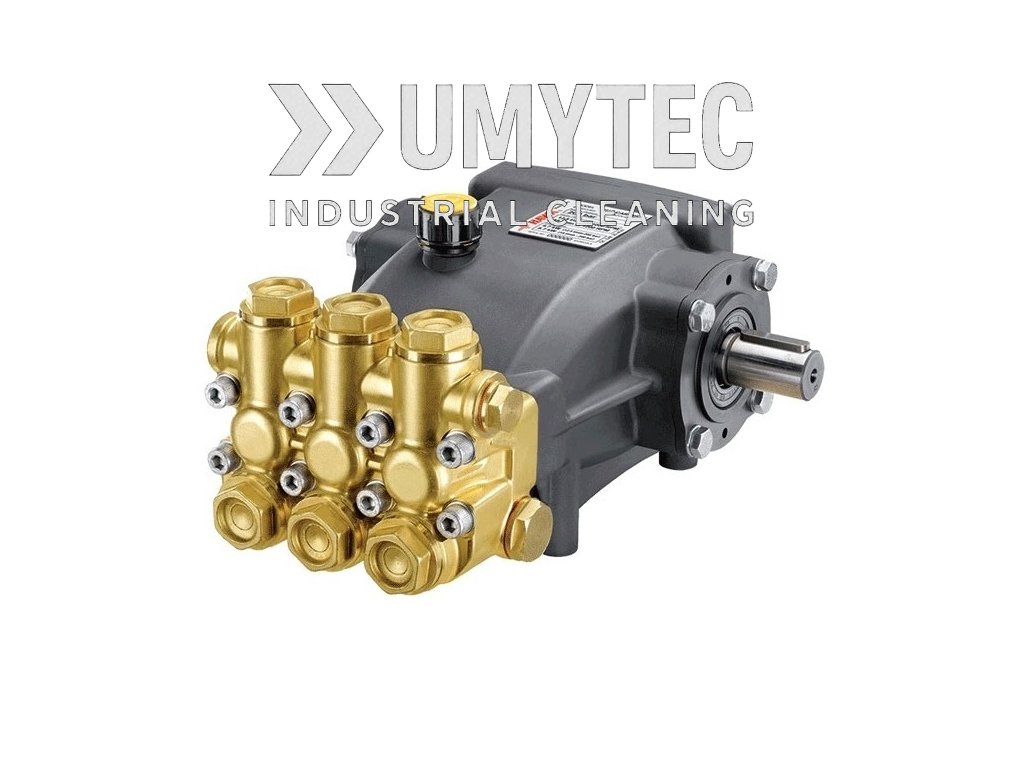

HAWK NPM1525
Code: 1420
Product detailed description
The HAWK NPM1525 is a high-pressure triplex plunger pump rated for 15 L/min at 250 bar at the documented 50 Hz operating point. It runs at 1450 rpm and requires 7.1 kW (9.6 hp).
Verified technical specifications
- Flow rate: 15 L/min
- Maximum pressure: 250 bar
- Speed: 1450 rpm at 50 Hz
- Power requirement: 7.1 kW / 9.6 hp
- Maximum water temperature: 65 °C
- Inlet: G 1/2"
- Outlet: G 3/8"
HAWK lists separate left- and right-hand shaft versions of the NPM1525. Confirm the required shaft orientation before ordering. Compare the complete HAWK high-pressure pump range or review the official HAWK NPM series data.
Additional parameters
| Category: | PUMPS |
|---|---|
| Flow rate: | 15 L/min |
| Pressure Max: | 250 bar |
| RPM: | 1450 rpm |
| Power: | 7.1 kW / 9.6 hp |
HAWK: high-pressure pump technology
HAWK specialises in high-pressure plunger pumps for professional cleaning and industrial water systems. Manufactured by Leuco in Italy, the brand covers a wide range of duties, from compact pressure washers to vehicle washing installations and demanding industrial cleaning equipment.
Product range and applications
The HAWK range includes pumps for pressure washing, car washes, municipal cleaning, misting and firefighting. Dedicated configurations also serve food processing, reverse osmosis and chemical applications. These uses require different materials and operating conditions, so suitability depends on the specific pump series.
- High-pressure pumps for professional pressure washers and industrial cleaning.
- Car wash configurations for self-service bays and automatic washing systems.
- Compact misting pumps and higher-flow pumps for mobile equipment.
- Accessories and service components for pump installation and maintenance.
Choosing a HAWK pump
Match flow rate, operating pressure, shaft arrangement and rotational speed to the drive and cleaning system. Inlet temperature, water quality and seal compatibility are equally important when selecting a replacement or designing a new installation.
Compare models in our HAWK high-pressure pumps category. For servicing, identify the complete model designation before selecting a repair kit.
