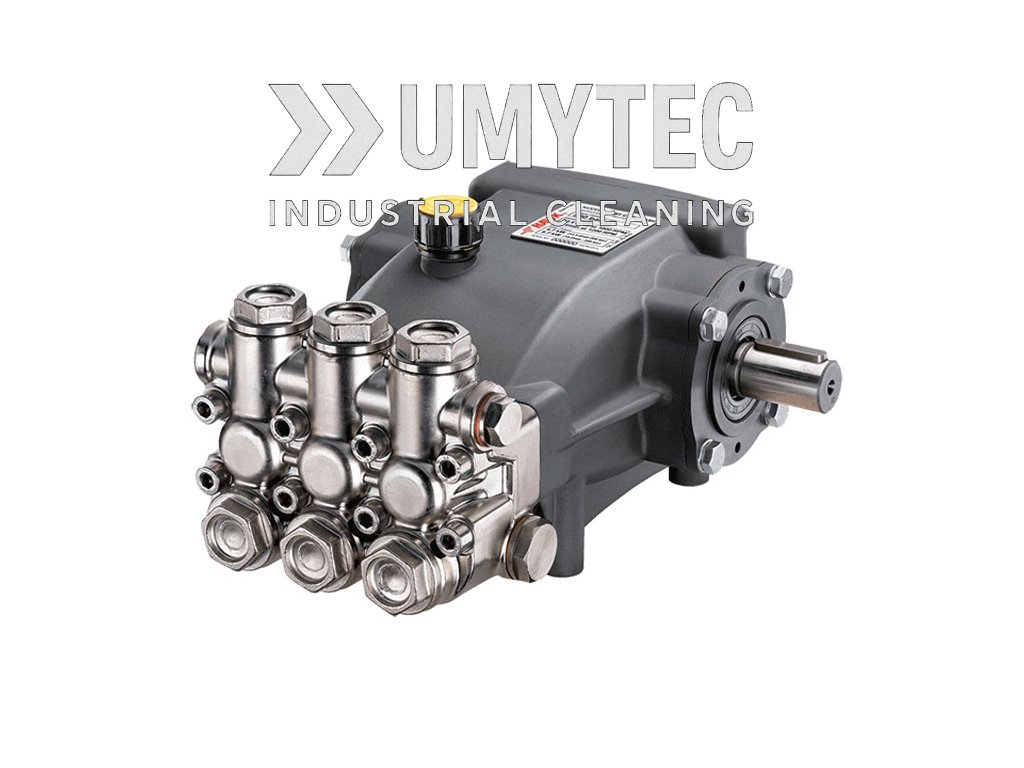

HAWK NMT1520CW
Code: 331/PRA
Product detailed description
HAWK NMT1520CW technical data
- Flow rate: 15 L/min
- Maximum pressure: 200 bar
- Pump speed: 1450 rpm
- Manufacturer-rated power: 5.7 kW
Maximum inlet water temperature: 65 °C. The CW version is intended for car wash applications and uses special seals and a nickel-plated manifold.
At 1740 rpm (60 Hz): 18 L/min, 200 bar, 6.8 kW. Left shaft: NMT1520CWL / 1.099-300.0. Right shaft: NMT1520CWR / 1.099-301.0.
Selection and documentation
Check the complete model code, shaft direction and installation dimensions before selecting a replacement.
Additional parameters
| Category: | PUMPS |
|---|---|
| Flow rate: | 15 L/min |
| Pressure Max: | 200 bar |
| RPM: | 1450/min |
| Power: | 5,7 kW |
HAWK: high-pressure pump technology
HAWK specialises in high-pressure plunger pumps for professional cleaning and industrial water systems. Manufactured by Leuco in Italy, the brand covers a wide range of duties, from compact pressure washers to vehicle washing installations and demanding industrial cleaning equipment.
Product range and applications
The HAWK range includes pumps for pressure washing, car washes, municipal cleaning, misting and firefighting. Dedicated configurations also serve food processing, reverse osmosis and chemical applications. These uses require different materials and operating conditions, so suitability depends on the specific pump series.
- High-pressure pumps for professional pressure washers and industrial cleaning.
- Car wash configurations for self-service bays and automatic washing systems.
- Compact misting pumps and higher-flow pumps for mobile equipment.
- Accessories and service components for pump installation and maintenance.
Choosing a HAWK pump
Match flow rate, operating pressure, shaft arrangement and rotational speed to the drive and cleaning system. Inlet temperature, water quality and seal compatibility are equally important when selecting a replacement or designing a new installation.
Compare models in our HAWK high-pressure pumps category. For servicing, identify the complete model designation before selecting a repair kit.
