HAWK NHDP8515
Code: 1357
Product detailed description

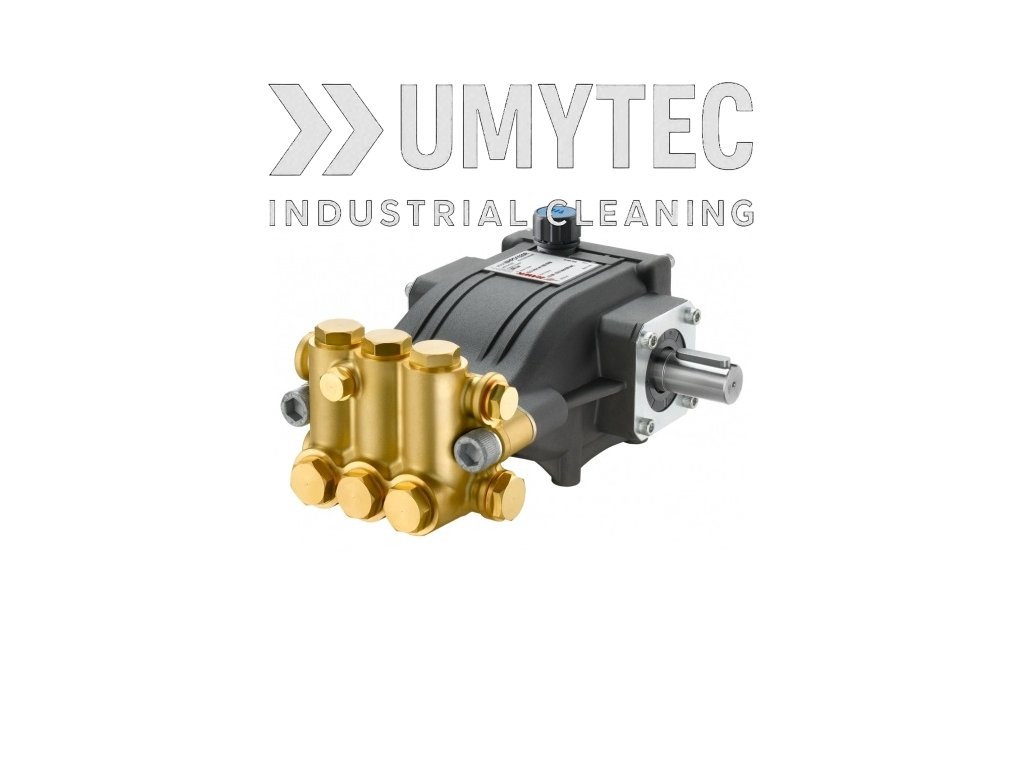

HAWK NHDP8515 high-pressure pump
The HAWK NHDP8515 is a compact triplex plunger pump for professional pressure washers and misting systems. At 50 Hz it delivers 8.5 L/min at a maximum pressure of 150 bar and operates at 1450 RPM.
Verified technical specifications
- 50 Hz: 8.5 L/min, 1450 RPM, 2.4 kW maximum absorbed power
- 60 Hz: 10.1 L/min, 1740 RPM, 2.9 kW maximum absorbed power
- Maximum pressure: 150 bar
- Maximum water temperature: 65 °C
- Connections: G 1/2" inlet, G 3/8" outlet
- Weight / oil capacity: 8.2 kg / 0.4 L
Shaft direction and ordering code
This model is available with a left-hand shaft as NHDP8515L (part no. 1.905-765.0) and a right-hand shaft as NHDP8515R (part no. 1.905-766.0). Confirm the shaft direction and complete ordering code before purchase.
Documentation and selection support
Official NHDP 150 technical sheet (PDF). Performance values follow this technical sheet; the online series table rounds the 60 Hz flow.
Browse all HAWK high-pressure pumps or check the official HAWK NHDP 150 series data. UMYTEC can help verify the required configuration from the pump nameplate or full model code.
Additional parameters
| Category: | PUMPS |
|---|---|
| Flow rate: | 8,5 L/min |
| Pressure Max: | 150 bar |
| RPM (50 / 60 Hz): | 1450 / 1740 rpm |
| Max. power (50 / 60 Hz): | 2.4 / 2.9 kW |
HAWK: high-pressure pump technology
HAWK specialises in high-pressure plunger pumps for professional cleaning and industrial water systems. Manufactured by Leuco in Italy, the brand covers a wide range of duties, from compact pressure washers to vehicle washing installations and demanding industrial cleaning equipment.
Product range and applications
The HAWK range includes pumps for pressure washing, car washes, municipal cleaning, misting and firefighting. Dedicated configurations also serve food processing, reverse osmosis and chemical applications. These uses require different materials and operating conditions, so suitability depends on the specific pump series.
- High-pressure pumps for professional pressure washers and industrial cleaning.
- Car wash configurations for self-service bays and automatic washing systems.
- Compact misting pumps and higher-flow pumps for mobile equipment.
- Accessories and service components for pump installation and maintenance.
Choosing a HAWK pump
Match flow rate, operating pressure, shaft arrangement and rotational speed to the drive and cleaning system. Inlet temperature, water quality and seal compatibility are equally important when selecting a replacement or designing a new installation.
Compare models in our HAWK high-pressure pumps category. For servicing, identify the complete model designation before selecting a repair kit.
