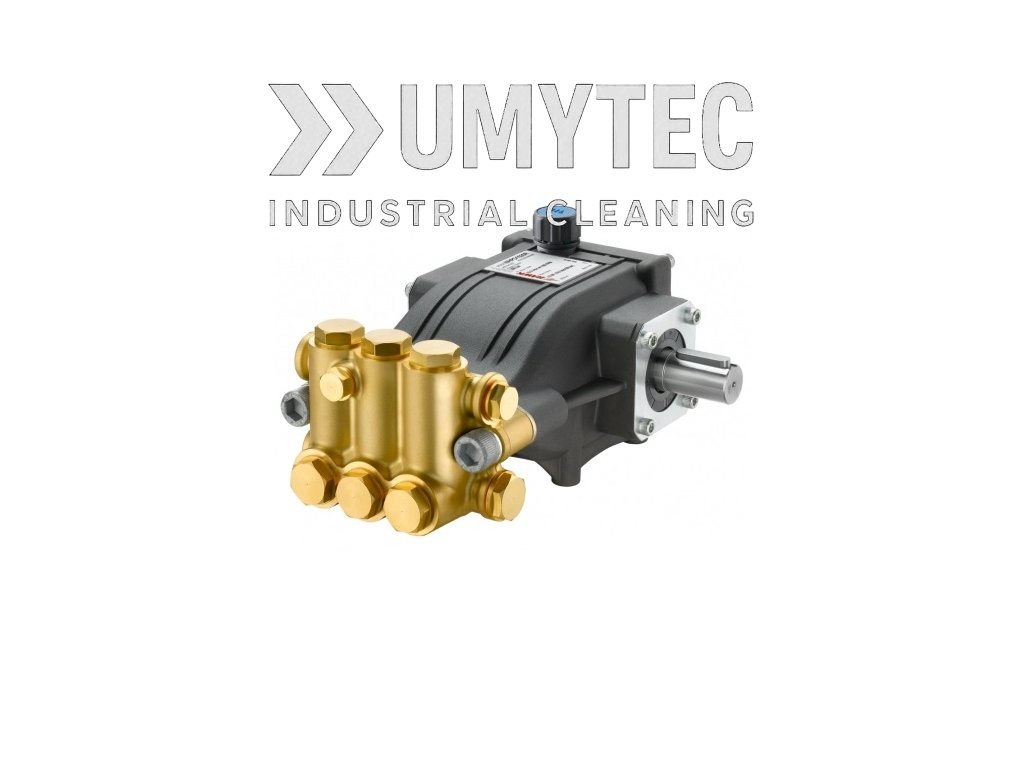

HAWK NHDP1520
Code: 1359
Product detailed description
HAWK NHDP1520 is a triplex high-pressure pump from the NHDP 200 series. At 50 Hz it delivers 15 L/min at 1450 rpm and is rated for a maximum pressure of 200 bar. HAWK lists the series for professional pressure washers and vehicle-wash systems.
Verified technical data
| Parameter | 50 Hz | 60 Hz |
|---|---|---|
| Flow rate | 15 L/min | 18 L/min |
| Speed | 1450 rpm | 1740 rpm |
| Power | 7.7 HP / 5.7 kW | 9.2 HP / 6.8 kW |
| Maximum pressure | 200 bar | 200 bar |
- Maximum water temperature: 65 °C
- Weight: 8.2 kg
- Oil: SAE 10W40, capacity 0.4 L
- Inlet: G 1/2"
- Outlet: G 3/8"
Shaft versions and ordering codes
NHDP1520L: 1.904-562.0 (left-hand shaft). NHDP1520R: 1.904-561.0 (right-hand shaft). Confirm the complete ordering code and shaft direction before purchase.
Applications and product selection
The NHDP 200 series is intended for professional pressure washers and vehicle-wash installations. Before ordering, verify shaft direction and installation dimensions for your machine.
See the HAWK high-pressure pump range, the official HAWK NHDP 200 series page and the official NHDP 200 technical sheet.
Additional parameters
| Category: | PUMPS |
|---|---|
| Flow rate: | 15 L/min |
| Pressure Max: | 200 bar |
| RPM (50 / 60 Hz): | 1450 / 1740 rpm |
| Max. power (50 / 60 Hz): | 5.7 / 6.8 kW |
HAWK: high-pressure pump technology
HAWK specialises in high-pressure plunger pumps for professional cleaning and industrial water systems. Manufactured by Leuco in Italy, the brand covers a wide range of duties, from compact pressure washers to vehicle washing installations and demanding industrial cleaning equipment.
Product range and applications
The HAWK range includes pumps for pressure washing, car washes, municipal cleaning, misting and firefighting. Dedicated configurations also serve food processing, reverse osmosis and chemical applications. These uses require different materials and operating conditions, so suitability depends on the specific pump series.
- High-pressure pumps for professional pressure washers and industrial cleaning.
- Car wash configurations for self-service bays and automatic washing systems.
- Compact misting pumps and higher-flow pumps for mobile equipment.
- Accessories and service components for pump installation and maintenance.
Choosing a HAWK pump
Match flow rate, operating pressure, shaft arrangement and rotational speed to the drive and cleaning system. Inlet temperature, water quality and seal compatibility are equally important when selecting a replacement or designing a new installation.
Compare models in our HAWK high-pressure pumps category. For servicing, identify the complete model designation before selecting a repair kit.
