HAWK NHDP1012
Code: 1792
Product detailed description

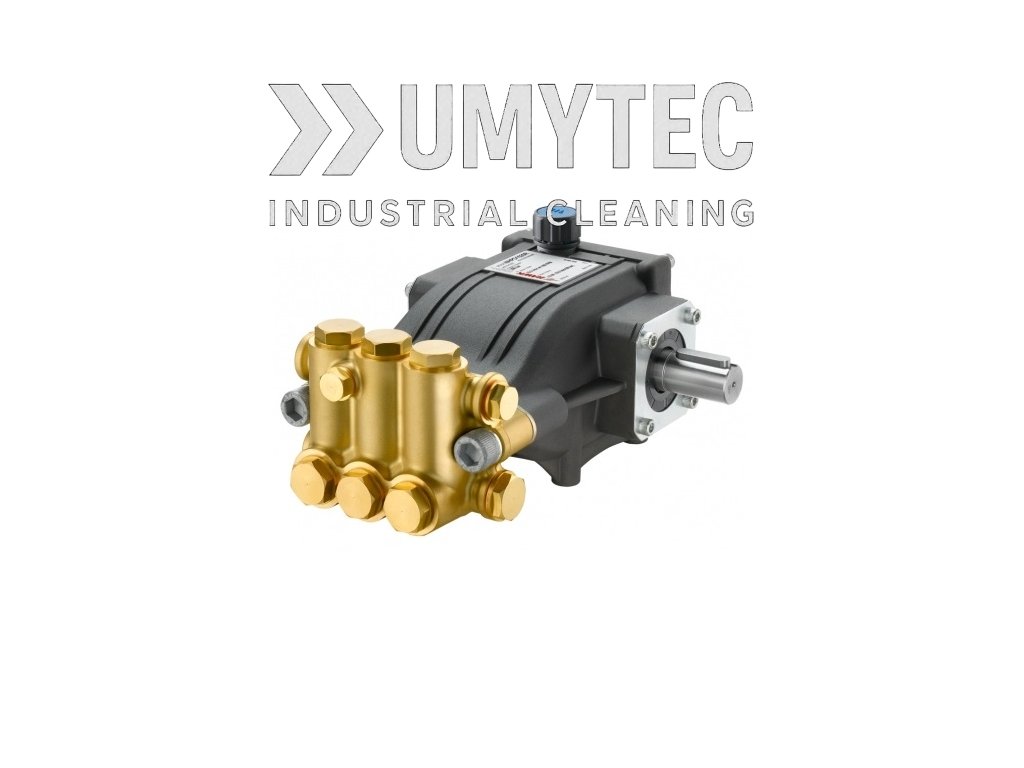

HAWK NHDP1012 – 120 bar pump
The NHDP1012 belongs to the NHDP 120 series for professional pressure washers and misting systems.
Rated performance
- 50 Hz: 10 L/min, 1450 rpm, maximum power 2.2 kW.
- 60 Hz: 12 L/min, 1740 rpm, maximum power 2.6 kW.
- Maximum pressure: 120 bar; maximum water temperature: 65 °C.
- Inlet G 1/2"; outlet G 3/8"; oil capacity 0.4 L.
Manufacturer versions
- NHDP1012L: 1.904-622.0, left shaft.
- NHDP1012R: 1.904-621.0, right shaft.
Confirm the required shaft version with UMYTEC before ordering. These codes identify manufacturer versions; they do not indicate separate stock availability.
Choosing a replacement and drive
Match the complete pump code, shaft side, motor speed, mounting dimensions and connections before ordering. Motor power alone does not establish compatibility: the motor frame, flange and coupling must also match. Send UMYTEC a photo of the pump plate and your motor details if you need help choosing the configuration.
Documentation
Official HAWK NHDP 120 technical sheet and parts list (PDF)
Additional parameters
| Category: | PUMPS |
|---|---|
| Flow rate: | 10 L/min |
| Pressure Max: | 120 bar |
| RPM (50 / 60 Hz): | 1450 / 1740 rpm |
| Max. power (50 / 60 Hz): | 2.2 / 2.6 kW |
HAWK: high-pressure pump technology
HAWK specialises in high-pressure plunger pumps for professional cleaning and industrial water systems. Manufactured by Leuco in Italy, the brand covers a wide range of duties, from compact pressure washers to vehicle washing installations and demanding industrial cleaning equipment.
Product range and applications
The HAWK range includes pumps for pressure washing, car washes, municipal cleaning, misting and firefighting. Dedicated configurations also serve food processing, reverse osmosis and chemical applications. These uses require different materials and operating conditions, so suitability depends on the specific pump series.
- High-pressure pumps for professional pressure washers and industrial cleaning.
- Car wash configurations for self-service bays and automatic washing systems.
- Compact misting pumps and higher-flow pumps for mobile equipment.
- Accessories and service components for pump installation and maintenance.
Choosing a HAWK pump
Match flow rate, operating pressure, shaft arrangement and rotational speed to the drive and cleaning system. Inlet temperature, water quality and seal compatibility are equally important when selecting a replacement or designing a new installation.
Compare models in our HAWK high-pressure pumps category. For servicing, identify the complete model designation before selecting a repair kit.
