HAWK MXT1015
Code: 1497
Product detailed description

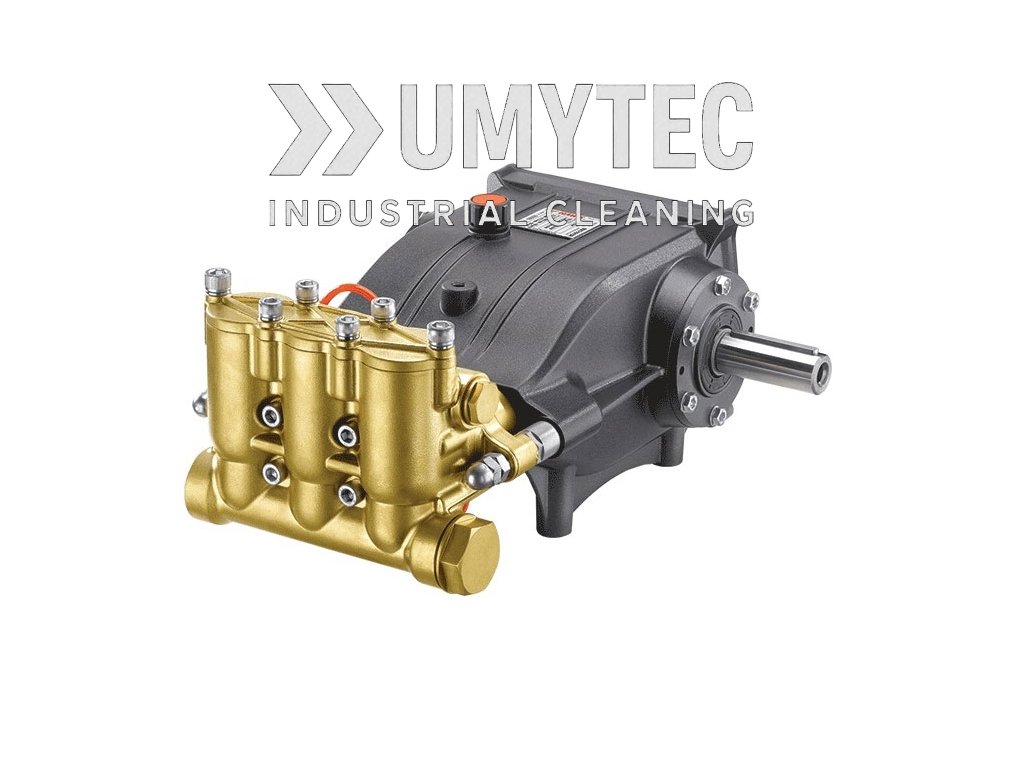

HAWK MXT1015 high-flow pump
The HAWK MXT1015 is a high-flow triplex plunger pump for vehicle-washing systems, municipal cleaning equipment, misting and fire-fighting installations. At 50 Hz it delivers 100 L/min at a maximum pressure of 150 bar and operates at 1450 RPM.
Verified technical specifications
- 50 Hz: 100 L/min, 1450 RPM, 27.7 kW maximum absorbed power
- 60 Hz: 120 L/min, 1740 RPM, 33.2 kW maximum absorbed power
- Maximum pressure: 150 bar
- Maximum water temperature: 65 °C
- Connections: G 1 1/4" inlet, G 3/4" outlet
- Oil capacity: 2.3 L
Configuration and ordering code
The official MXT range includes MXT1015B with power take-off (part no. 1.905-047.0), MXT1015L with left-hand shaft (part no. 1.099-167.0) and MXT1015R with right-hand shaft (part no. 1.099-168.0). Confirm the shaft configuration and complete ordering code before purchase.
Documentation and selection support
Browse all HAWK high-pressure pumps or check the official HAWK MXT series data. UMYTEC can help verify motor power, pump speed and installation configuration.
Additional parameters
| Category: | PUMPS |
|---|---|
| Flow rate: | 100 L/min |
| Pressure Max: | 150 bar |
| RPM: | 1450-1740 /min |
| Power: | 27,7-33,2 kW |
HAWK: high-pressure pump technology
HAWK specialises in high-pressure plunger pumps for professional cleaning and industrial water systems. Manufactured by Leuco in Italy, the brand covers a wide range of duties, from compact pressure washers to vehicle washing installations and demanding industrial cleaning equipment.
Product range and applications
The HAWK range includes pumps for pressure washing, car washes, municipal cleaning, misting and firefighting. Dedicated configurations also serve food processing, reverse osmosis and chemical applications. These uses require different materials and operating conditions, so suitability depends on the specific pump series.
- High-pressure pumps for professional pressure washers and industrial cleaning.
- Car wash configurations for self-service bays and automatic washing systems.
- Compact misting pumps and higher-flow pumps for mobile equipment.
- Accessories and service components for pump installation and maintenance.
Choosing a HAWK pump
Match flow rate, operating pressure, shaft arrangement and rotational speed to the drive and cleaning system. Inlet temperature, water quality and seal compatibility are equally important when selecting a replacement or designing a new installation.
Compare models in our HAWK high-pressure pumps category. For servicing, identify the complete model designation before selecting a repair kit.
