HAWK NHDP1315
Code: EML-12NHDP1315
Product detailed description
HAWK NHDP1315 belongs to the HAWK NHDP 150 series range. Catalogue reference: 12NHDP1315.
Technical specifications
| Manifold | brass |
|---|---|
| PTO | male shaft Ø 24 mm |
| Centering | 90/75 |
| RPM | 1450-1740 |
| FLOW RATE (L/MIN) | 13-15,5 |
| MAX PRESSURE (BAR) | 150 |
| MAX POWER (KW) | 3,7-4,3 |
| Catalogue reference | 12NHDP1315 |
Download technical / product sheet (PDF) ↗
Installation and model selection

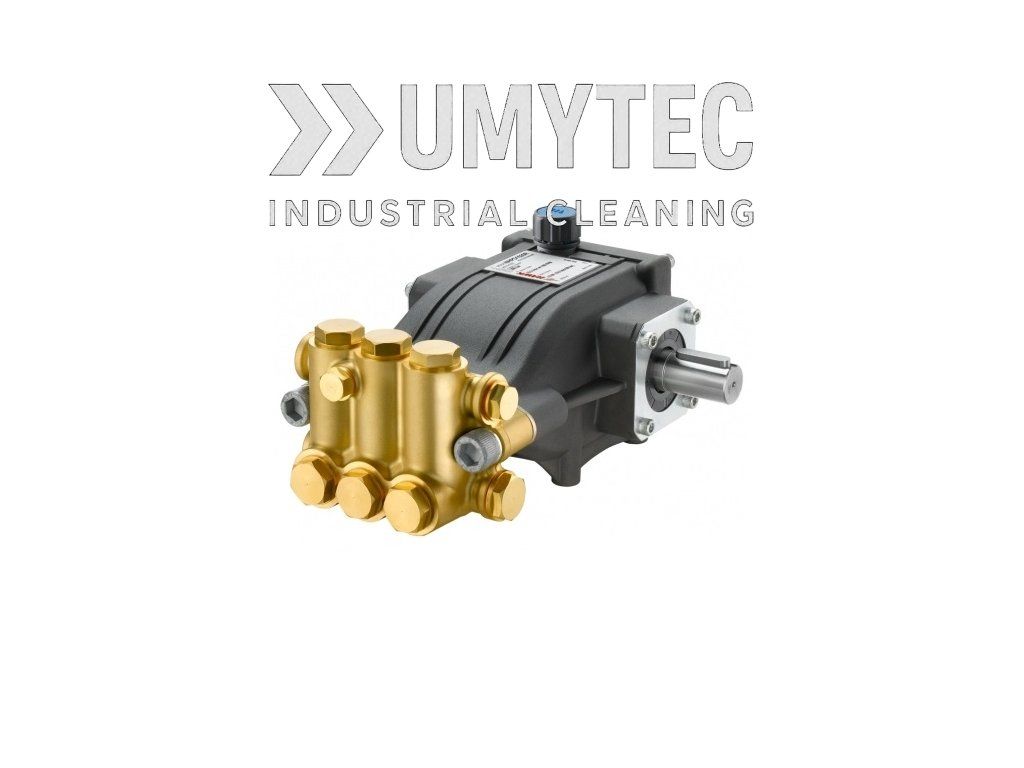

Match the complete reference, drive speed, shaft, mounting and connections to your installation. Where two operating speeds are listed, use the corresponding flow and power values. The photograph illustrates this pump series; the supplied execution follows the selected reference.
View all HAWK NHDP 150 series models → · Technical selection support →
Additional parameters
| Category: | HAWK NHDP 150 series |
|---|---|
| Flow rate: | Over 10 to 15 L/min, Over 15 to 20 L/min |
| Pressure Max: | Up to 150 bar |
| Manifold: | brass |
| PTO: | male shaft Ø 24 mm |
| Centering: | 90/75 |
| RPM: | 1450-1740 |
| FLOW RATE (L/MIN): | 13-15,5 |
| MAX PRESSURE (BAR): | 150 |
| MAX POWER (KW): | 3,7-4,3 |
| Catalogue reference: | 12NHDP1315 |
| Flow rate — exact values: | 13-15,5 L/min |
| Maximum pressure — exact values: | 150 bar |
HAWK: high-pressure pump technology
HAWK specialises in high-pressure plunger pumps for professional cleaning and industrial water systems. Manufactured by Leuco in Italy, the brand covers a wide range of duties, from compact pressure washers to vehicle washing installations and demanding industrial cleaning equipment.
Product range and applications
The HAWK range includes pumps for pressure washing, car washes, municipal cleaning, misting and firefighting. Dedicated configurations also serve food processing, reverse osmosis and chemical applications. These uses require different materials and operating conditions, so suitability depends on the specific pump series.
- High-pressure pumps for professional pressure washers and industrial cleaning.
- Car wash configurations for self-service bays and automatic washing systems.
- Compact misting pumps and higher-flow pumps for mobile equipment.
- Accessories and service components for pump installation and maintenance.
Choosing a HAWK pump
Match flow rate, operating pressure, shaft arrangement and rotational speed to the drive and cleaning system. Inlet temperature, water quality and seal compatibility are equally important when selecting a replacement or designing a new installation.
Compare models in our HAWK high-pressure pumps category. For servicing, identify the complete model designation before selecting a repair kit.
