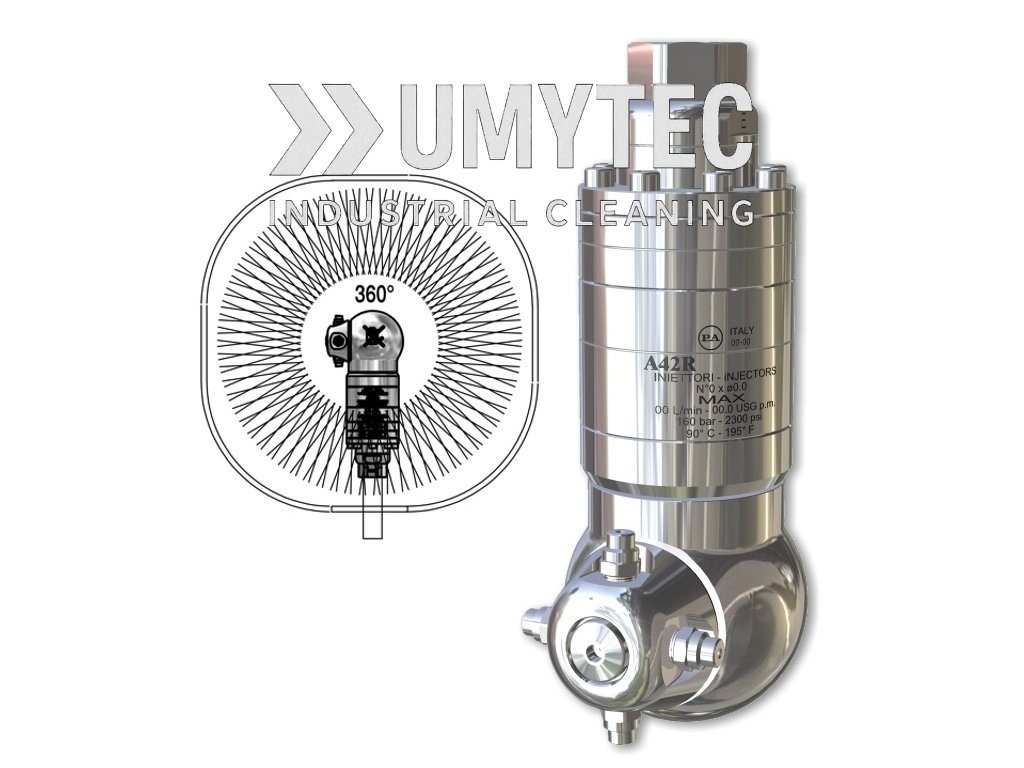

A42 R 360 – SELF-PROPELLED ROTATING CLEANING HEAD

Product detailed description

The A42 R 360 is a high-performance self-propelled rotating cleaning head, designed for the internal cleaning of closed tanks and large containers. Operating with pressures up to 160 bar and flow rates up to 55 l/min, this robust device delivers powerful and efficient 360° spray coverage in even the most demanding industrial environments.

The cleaning head functions as a fully hydraulic water motor. As water enters the body, it powers a turbine connected to a planetary gearbox, which transfers both rotary and orbital motion to the nozzles. This mechanical system enables a complete 360-degree cleaning cycle, ensuring uniform impact on all internal surfaces without the need for external power.

Thanks to its high flow capacity and consistent pressure-driven movement, the A42 R 360 is capable of effectively cleaning tanks with diameters up to 5 meters, making it ideal for medium to large volume applications in various industries.

Key Features:

• Max. operating pressure: 160 bar

• Max. flow rate: 55 l/min

• Self-powered via water flow – no external drive needed

• Planetary gearbox transmission for stable, synchronized motion

• 360° spray coverage for complete internal cleaning

• Effective for tanks up to Ø 5 meters

Recommended Industries & Applications:

• Food & beverage industry (mixing and fermentation tanks)

• Winemaking and viticulture (barriques, fermenters)

• Chemical & pharmaceutical processing tanks

• Municipal and industrial sludge tanks

• Agricultural storage vessels

The A42 R 360 offers a powerful, maintenance-efficient solution for professional cleaning systems that require reliable full-surface internal coverage in closed tank applications.
