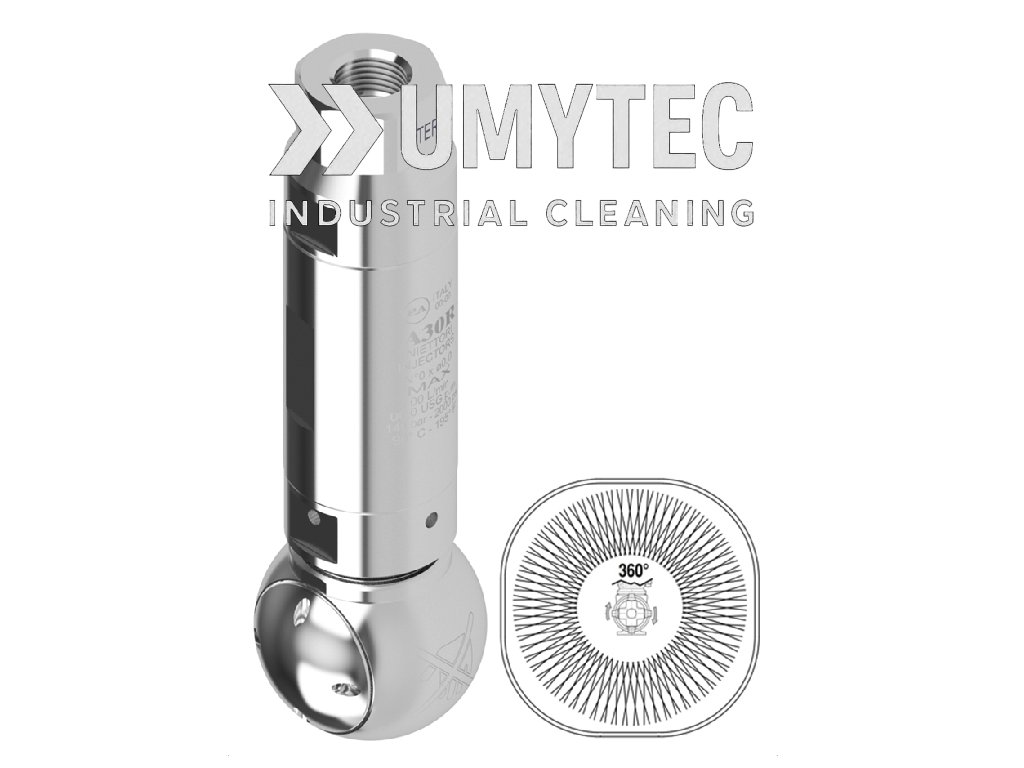

A30 R – SELF-PROPELLED ROTATING CLEANING HEAD
Code: 2292/22
Product detailed description
The A30 R is a self-propelled rotating cleaning head engineered for internal cleaning of closed tanks and containers of various shapes and sizes. Operating at pressures up to 160 bar and flow rates up to 33 l/min, it delivers consistent and high-impact spray coverage across the entire internal surface.
This unit functions as a hydraulic water motor, powered entirely by the force of incoming water. As water flows through the cleaning head, it activates a turbine connected to a planetary gearbox, which generates a combined rotary and orbital movement of the nozzles. This mechanism ensures 360° spray coverage in a controlled and reliable cleaning cycle.
With its robust design and precise spray pattern, the A30 R is ideal for cleaning tanks up to 3.5 meters in internal diameter. Its dynamic action allows efficient removal of residues, making it suitable for a wide range of industries.
Key Features:
-
Max. operating pressure: 160 bar
-
Max. flow rate: 33 l/min
-
Fully hydraulic operation – no external power source required
-
360° internal spray coverage
-
Planetary gear transmission for stable rotation and cleaning consistency
-
Effective for tanks up to Ø 3.5 meters
Typical Applications:
-
Food and beverage processing tanks
-
Wine and fermentation vessels
-
Chemical and pharmaceutical container cleaning
-
Municipal and industrial waste tanks
-
Agricultural slurry and feed tanks
Built to perform in demanding cleaning environments, the A30 R rotating cleaning head provides a powerful and maintenance-efficient solution for professional tank sanitation.
Additional parameters
| Category: | Cleaning heads |
|---|---|
| Max pressure (bar): | 160 |
| Max flow rate (l/min): | 33 |
| Body: | Stainless steel |
| Nozzles type: | M4 |
| Minimum overall (mm): | 60 |
| Rated rotation speed (rpm): | 20-30 |
| Inlet: | G 1/2" F |
| Number of nozzles: | 4 |
PA: valves and accessories for high-pressure cleaning
PA is an Italian manufacturer of components for pressure washers, vehicle washing and industrial cleaning equipment. Its portfolio covers pressure control, liquid delivery and operator accessories, helping equipment builders and service teams configure the complete cleaning circuit around the pump.
Product range and applications
PA products include unloader valves, spray guns, lances and other accessories used in high-pressure washing systems. The wider range also covers components for chemical application and specialised cleaning tasks. Applications extend from mobile pressure washers and car washes to cleaning installations in industrial environments.
Selection and system integration
Select each component according to the actual working pressure, water flow, temperature and connection type. An unloader valve must be compatible with the pump and circuit layout, while the gun, lance and nozzle need to work together at the intended operating point. Chemical compatibility and replacement-part identification are also essential for service work.
