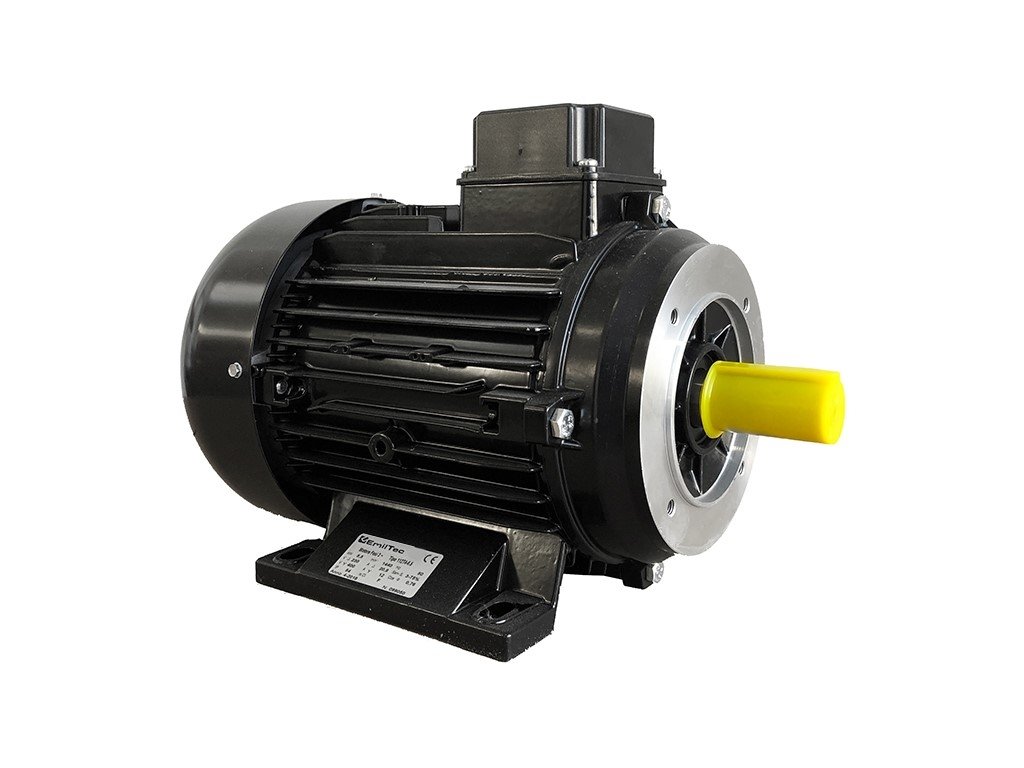

ELECTRIC MOTOR TYPE B3/B14 - 3 PHASE
Code: 1642/MEC
Product detailed description
The B3/B14 electric motor is specifically engineered for use with plunger pumps. It features a keyed shaft and requires a flexible coupling and flange for direct pump connection. Its robust construction and precise fit ensure efficient power transfer and long-term reliability.
This motor is compatible with most plunger and high-pressure pumps available on the market. Offered in multiple power ratings and speed configurations, it can be adapted to a wide range of applications, including industrial cleaning, pressure washing, and fluid transfer systems.
Features:
-
Mount type: B3/B14 (foot + flange)
-
Shaft: with key
-
Connection: requires flexible coupling and flange
-
Compatibility: suitable for most plunger pumps
-
Availability: various power and RPM options
-
Applications: industrial cleaning, pumping systems, agriculture
| Poles | Frame | Power Kw |
| 4 | mec100 | 2,2 |
| 4 | mec100 | 3 |
| 4 | mec100 | 4 |
| 4 | mec112 | 4 |
| 4 | mec112 | 5,5 |
| 4 | mec132S | 7,5 |
| 4 | mec132M | 11 |
| 4 | mec132M | 13 |
Additional parameters
| Category: | MOTORS |
|---|---|
| Napájacie napätie: | 230 |
| Frekvencia: | 50Hz |
| Otáčky: | 1450 /min |
| Typ: | B3/B14 – motor s výstupným hriadeľom a závitovou prírubou |
| Priemer dutého hriadeľa (mm): | 24 (H90), 28 (H100/H112), 38 (H132) |
