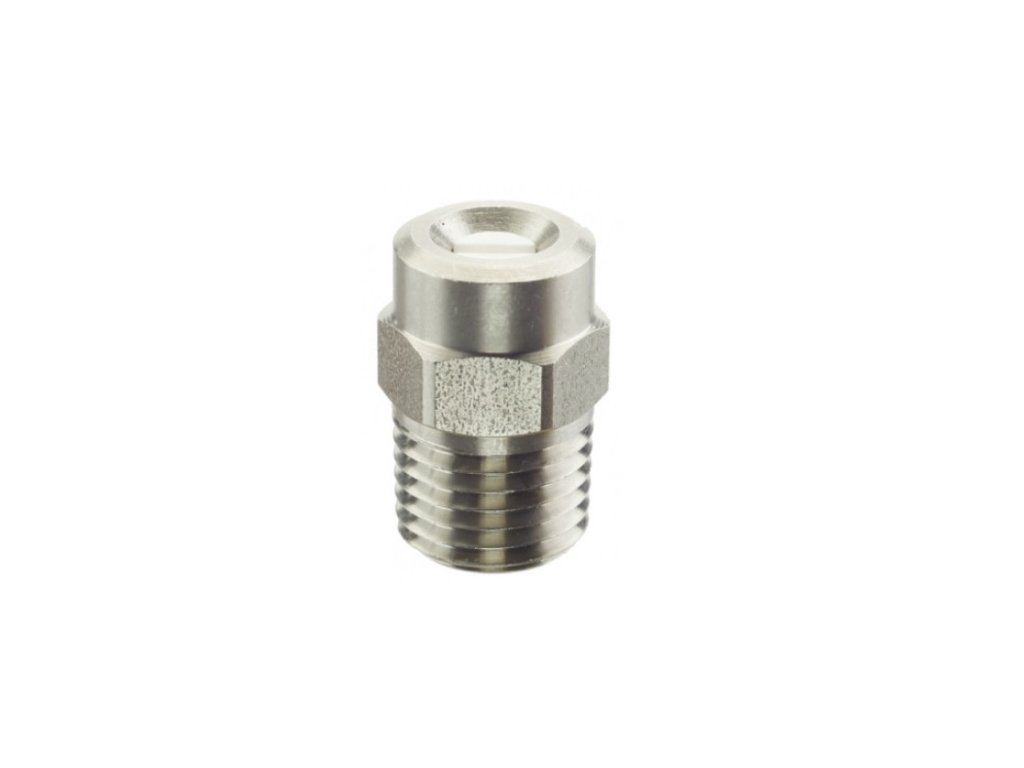

CERAMIC INSERT HIGH PRESSURE NOZZLE 1/4" 40° FLAT FAN – 1440 SERIES
Code: 2181/A
Product detailed description
The CERAMIC INSERT HIGH PRESSURE NOZZLE 1/4" 40° FLAT FAN – 1440 SERIES is engineered for applications demanding wide spray coverage and extreme wear resistance. Designed with a 40° flat fan spray angle, this nozzle ensures excellent surface area coverage while maintaining controlled flow and uniform distribution—making it ideal for rinsing, pre-wash, and general cleaning operations.
The integrated ceramic insert delivers superior abrasion resistance compared to stainless steel alternatives, significantly increasing service life under continuous high-pressure use. This makes the 1440 series especially well-suited for intensive-duty systems operating in environments with abrasive water, detergents, or frequent cleaning cycles.
Capable of withstanding pressures up to 310 bar, it performs reliably in:
-
Car wash tunnels and systems
-
Agricultural equipment cleaning
-
Food and wine industry washdowns
-
Municipal cleaning and sanitation setups
-
Industrial and chemical plant rinsing systems
With its 1/4" MEG-style flat fan design, wide spray angle, and ultra-durable ceramic core, the 1440 series is a go-to solution for professionals needing consistent, long-lasting spray performance across wide surfaces.
| Type | Nozzle Size |
|---|---|
| A | 015 |
| B | 02 |
| C | 025 |
| D | 03 |
| E | 035 |
| F | 04 |
| G | 045 |
| H | 05 |
| I | 055 |
| J | 06 |
| K | 065 |
| L | 075 |
| M | 08 |
| N | 09 |
| O | 11 |
| P | 12 |
Additional parameters
| Category: | Nozzles |
|---|---|
| Max pressure (bar): | 310 |
| Body: | Stainless steel |
| Insert: | Ceramic |
| Inlet: | Npt 1/4" M |
| Spray angle: | 40° |
